315D Caterpillar excavator specs & Dimensions (2007 - 2026)

Caterpillar 315D is a crawler excavator manufactured since 2007, with a weight of 17.45 tons. It features a track width of 500 mm,…

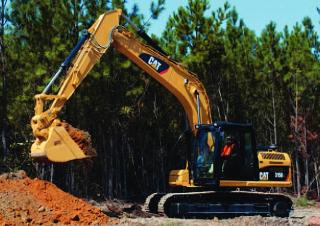

Caterpillar 315D is a crawler excavator manufactured since 2007, with a weight of 17.45 tons. It features a track width of 500 mm, a transport length of 8.52 meters, a transport width of 2.49 meters, and a transport height of 2.93 meters. The machine has a dredging depth of 5.7 meters and a maximum horizontal reach of 8.43 meters. The bucket width is 1.23 meters.

Crawler Excavators Caterpillar 315D

Technical specs - 315D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.45 t
Transport length
8.52 m
Transport width
2.49 m
Transport height
2.93 m
Track width
500 mm
Max. Reach horizontal
8.43 m
Dredging depth
5.7 m
Bucket width
1.23 m
Engine manuf.
Caterpillar
Engine type
C4.2 Acert
Engine power
91 kW
Displacement
4.25 l
No. of cylinders
4
Cylinder bore x stroke
102x130 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 315D FAQ

When was the Caterpillar 315D manufactured?

The Caterpillar 315D was first produced in 2007.

How much does the Caterpillar 315D weigh?

The Caterpillar 315D weighs 17.45 tons.

What are the transport dimensions of the Caterpillar 315D?

The Caterpillar 315D has a transport length of 8.52 meters, a transport width of 2.49 meters, and a transport height of 2.93 meters.

What is the fuel consumption of the Caterpillar 315D crawler excavator?

The Caterpillar 315D crawler excavator has a fuel consumption range of 8 to 15 liters per hour, with an average consumption of 11.5 liters per hour.

What is the track width of the Caterpillar 315D?

The Caterpillar 315D has a track width of 500 mm.

What is the excavation performance of the Caterpillar 315D?

The Caterpillar 315D has a dredging depth of 5.7 meters and a maximum horizontal reach of 8.43 meters.

What is the bucket width of the Caterpillar 315D excavator?

The bucket width of the Caterpillar 315D excavator is 1.23 meters.

How much is a Caterpillar 315D Crawler excavator (2007u20132025) worth?

The residual value of the Caterpillar 315D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
