313D2 GC Caterpillar excavator specs & Dimensions (2017 - 2026)

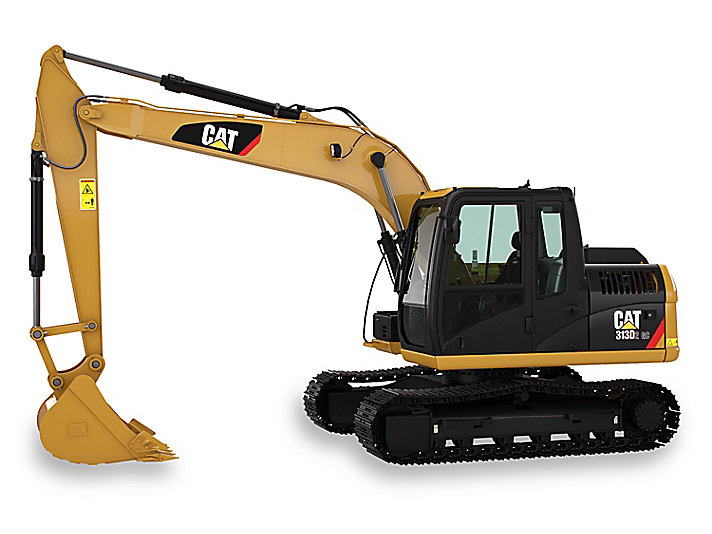

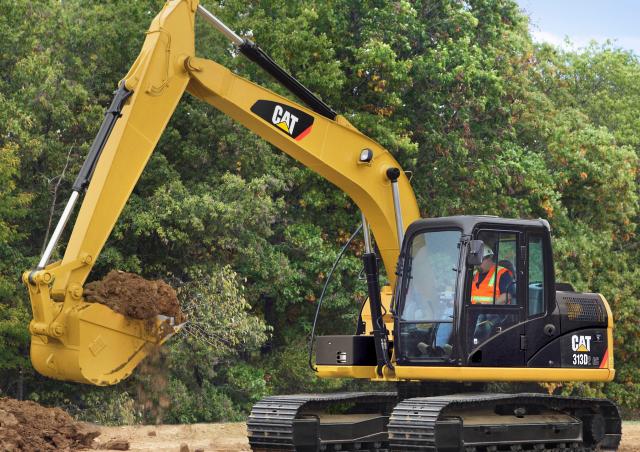

Caterpillar 313D2 GC is a crawler excavator manufactured since 2017. It has a weight of 13.1 tons and a track width of 770 mm. The…

Caterpillar 313D2 GC is a crawler excavator manufactured since 2017. It has a weight of 13.1 tons and a track width of 770 mm. The transport dimensions are 7.83 meters in length, 2.76 meters in width, and 2.83 meters in height. The machine features a tear-out force of 95 kN, a dredging depth of 5.54 meters, and a maximum horizontal reach of 8.18 meters. The bucket capacity is 0.53 cubic meters.

Crawler Excavators Caterpillar 313D2 GC
Crawler Excavators Caterpillar 313D2 GC
Crawler Excavators Caterpillar 313D2 GC
Crawler Excavators Caterpillar 313D2 GC
Crawler Excavators Caterpillar 313D2 GC
Crawler Excavators Caterpillar 313D2 GC

Technical specs - 313D2 GC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.1 t
Transport length
7.83 m
Transport width
2.76 m
Transport height
2.83 m
Bucket capacity
0.53 m³
Undercarriage
SL
Track width
770 mm
Boom
MB
Max. Reach horizontal
8.18 m
Dredging depth
5.54 m
Tear-out force
95 kN
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
55 kW
Displacement
4.4 l
Cylinder bore x stroke
105x127 mm
Emission level
U.S. EPA Tier 3 / EU IIIA

More technical details, like: bucket capacity min., bucket capacity max., bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 313D2 GC FAQ

When was the Caterpillar 313D2 GC manufactured?

The Caterpillar 313D2 GC was first produced in 2017.

How much does the Caterpillar 313D2 GC weigh?

The Caterpillar 313D2 GC weighs 13.1 tons.

What are the transport dimensions of the Caterpillar 313D2 GC?

The Caterpillar 313D2 GC has a transport length of 7.83 meters, a transport width of 2.76 meters, and a transport height of 2.83 meters.

What is the fuel consumption of the Caterpillar 313D2 GC crawler excavator?

The Caterpillar 313D2 GC has a fuel consumption range of 6 to 11 liters per hour, with an average consumption of 8.4 liters per hour.

What are the undercarriage specifications of the Caterpillar 313D2 GC?

The Caterpillar 313D2 GC has a standard undercarriage with a track width of 770 mm.

What are the excavation performance specifications of the Caterpillar 313D2 GC?

The Caterpillar 313D2 GC has a dredging depth of 5.54 meters, a maximum horizontal reach of 8.18 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar 313D2 GC?

The Caterpillar 313D2 GC has a tear-out force of 95 kN.

What is the bucket capacity of the Caterpillar 313D2 GC excavator?

The bucket capacity of the Caterpillar 313D2 GC is 0.53 cubic meters.
