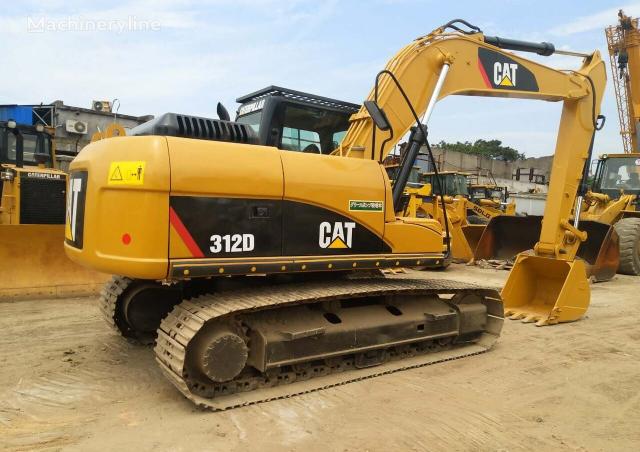

312D Caterpillar excavator specs & Dimensions (2017 - 2019)

Caterpillar 312D is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 12.86 tons. It features a track width of …

Caterpillar 312D is a Crawler Excavator manufactured from 2017 to 2019, with a weight of 12.86 tons. It features a track width of 500 mm, a transport length of 7.61 meters, a transport width of 2.49 meters, and a transport height of 2.83 meters. The machine has a tear-out force of 96 kN, a dredging depth of 5.54 meters, and a maximum horizontal reach of 8.17 meters. The bucket capacity is 0.52 cubic meters.

Crawler Excavators Caterpillar 312D

Technical specs - 312D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.86 t
Transport length
7.61 m
Transport width
2.49 m
Transport height
2.83 m
Bucket capacity
0.52 m³
Track width
500 mm
Boom
MB
Max. Reach horizontal
8.17 m
Dredging depth
5.54 m
Tear-out force
96 kN
Engine manuf.
Caterpillar
Engine type
C4.2 Acert
Engine power
67 kW
Displacement
4.25 l
Cylinder bore x stroke
102x130 mm
Emission level
Stage IIIA

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 312D FAQ

When was the Caterpillar 312D manufactured?

The Caterpillar 312D was manufactured from 2017 to 2019.

How much does the Caterpillar 312D weigh?

The Caterpillar 312D weighs 12.86 tons.

What are the transport dimensions of the Caterpillar 312D crawler excavator?

The Caterpillar 312D has a transport length of 7.61 meters, a transport width of 2.49 meters, and a transport height of 2.83 meters.

What is the track width of the Caterpillar 312D's undercarriage?

The Caterpillar 312D has a track width of 500 mm.

What are the excavation performance specifications of the Caterpillar 312D?

The Caterpillar 312D has a dredging depth of 5.54 meters, a maximum horizontal reach of 8.17 meters, and is equipped with a monobloc boom.

What are the power ratings of the Caterpillar 312D?

The source data does not provide power rating information for the Caterpillar 312D.

What is the bucket capacity of the Caterpillar 312D excavator?

The bucket capacity of the Caterpillar 312D excavator is 0.52 cubic meters.

How much is a Caterpillar 312D Crawler excavator (2017u20132019) worth?

The residual value of the Caterpillar 312D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
