309CR VAB Caterpillar excavator specs & Dimensions (2019 - 2026)

Caterpillar 309CR VAB is a crawler excavator manufactured since 2019. It has a weight of 9.4 tons and a track width of 450 mm. The…

Caterpillar 309CR VAB is a crawler excavator manufactured since 2019. It has a weight of 9.4 tons and a track width of 450 mm. The transport dimensions are 7.16 meters in length, 2.47 meters in width, and 2.45 meters in height. The machine features a tear-out force of 62 kN, a dredging depth of 3.47 meters, and a maximum horizontal reach of 7.732 meters. Special equipment includes air conditioning and a blade.

Crawler Excavators Caterpillar 309CR VAB

Technical specs - 309CR VAB Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.4 t
Transport length
7.16 m
Transport width
2.47 m
Transport height
2.45 m
Track width
450 mm
Max. Reach horizontal
7.732 m
Dredging depth
3.47 m
Tear-out force
62 kN
Engine manuf.
Caterpillar
Engine type
C3.3B
Engine power
52.4 kW
Displacement
3.33 l
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f/ V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 309CR VAB FAQ

When was the Caterpillar 309CR VAB manufactured?

The Caterpillar 309CR VAB was first produced in 2019.

How much does the Caterpillar 309CR VAB weigh?

The Caterpillar 309CR VAB weighs 9.4 tons.

What are the transport dimensions of the Caterpillar 309CR VAB?

The Caterpillar 309CR VAB has a transport length of 7.16 meters, a transport width of 2.47 meters, and a transport height of 2.45 meters.

What is the track width of the Caterpillar 309CR VAB's undercarriage?

The Caterpillar 309CR VAB has a track width of 450 mm.

What are the excavation performance specifications of the Caterpillar 309CR VAB?

The Caterpillar 309CR VAB has a dredging depth of 3.47 meters and a maximum horizontal reach of 7.732 meters.

What is the tear-out force of the Caterpillar 309CR VAB, given that no power ratings are provided?

The Caterpillar 309CR VAB has a tear-out force of 62 kN.

How much is a Caterpillar 309CR VAB Crawler excavator (2019u20132025) worth?

The residual value of the Caterpillar 309CR VAB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 309CR VAB overview

Caterpillar 309CR VAB features overview

Stick Steer Travel Mode

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!


Safety on the Job Site

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.


Engine

Features

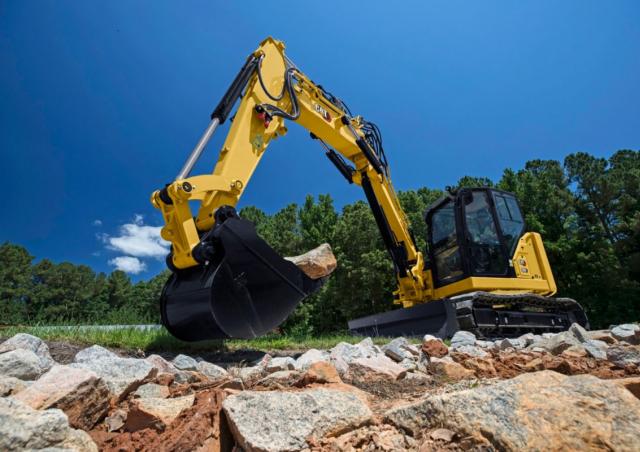

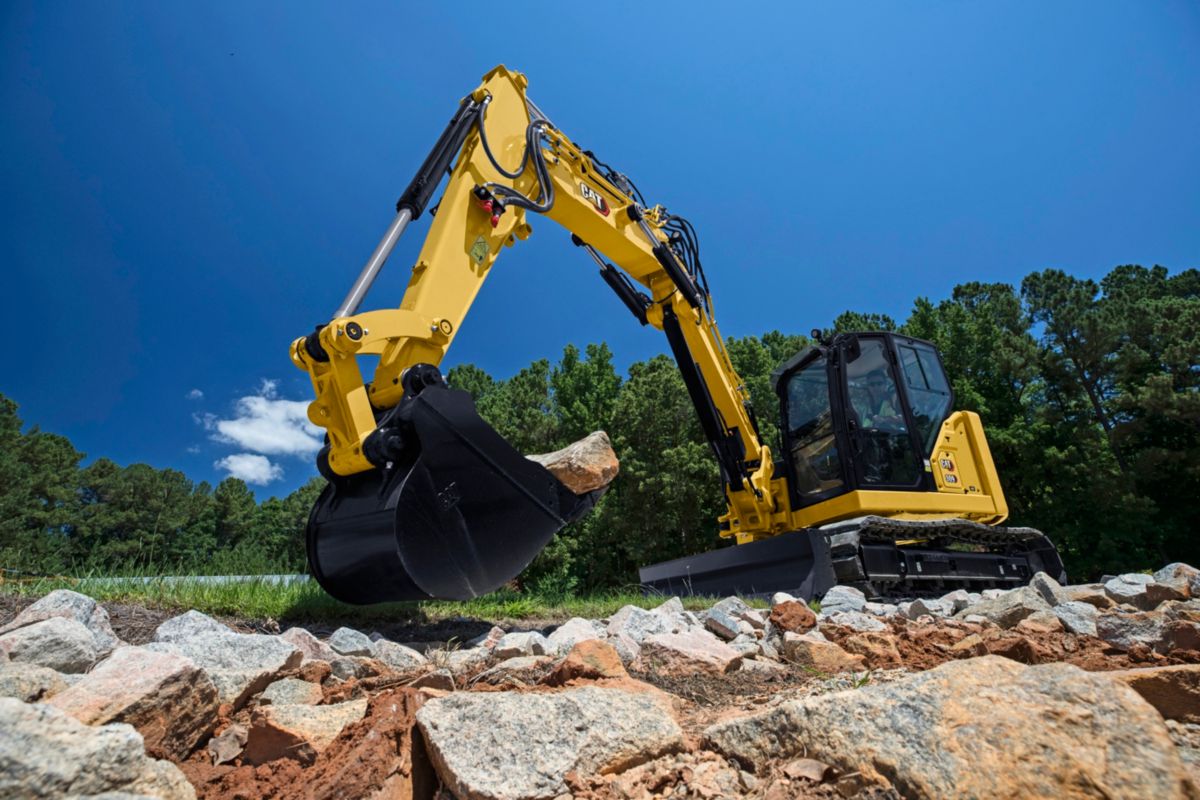

The Cat 309 CR Variable Angle Boom (VAB) Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications. The Variable Angle Boom provides the maximum in linkage flexibility in tight applications.


Lower Operating Costs

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.


Cab

All Day Comfort

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
