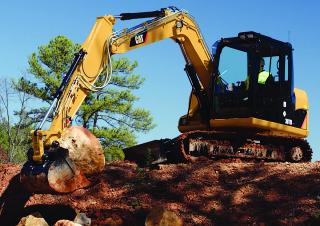

307D Caterpillar excavator specs & Dimensions (2008 - 2026)

Caterpillar 307D is a crawler excavator manufactured since 2008. It has a weight of 7.1 tons and a track width of 450 mm. The tran…

Caterpillar 307D is a crawler excavator manufactured since 2008. It has a weight of 7.1 tons and a track width of 450 mm. The transport dimensions are 5.7 meters in length, 2.3 meters in width, and 2.63 meters in height. The machine offers a tear-out force of 49.2 kN, a dredging depth of 4.05 meters, and a maximum horizontal reach of 6.29 meters. It is equipped with air conditioning and a blade.

Crawler Excavators Caterpillar 307D

Technical specs - 307D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.1 t
Transport length
5.7 m
Transport width
2.3 m
Transport height
2.63 m
Track width
450 mm
Max. Reach horizontal
6.29 m
Dredging depth
4.05 m
Tear-out force
49.2 kN
Engine manuf.
Mitsubishi
Engine type
4M40TL
Engine power
41.5 kW
Displacement
2.83 l
Cylinder bore x stroke
95x100 mm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 307D FAQ

When was the Caterpillar 307D manufactured?

The Caterpillar 307D was first produced in 2008.

How much does the Caterpillar 307D weigh?

The Caterpillar 307D weighs 7.1 tons.

What are the transport dimensions of the Caterpillar 307D?

The Caterpillar 307D has a transport length of 5.7 meters, a transport width of 2.3 meters, and a transport height of 2.63 meters.

What is the track width of the Caterpillar 307D's undercarriage?

The Caterpillar 307D has a track width of 450 mm on its undercarriage.

What are the excavation performance specifications of the Caterpillar 307D?

The Caterpillar 307D has a dredging depth of 4.05 meters and a maximum horizontal reach of 6.29 meters.

What is the power rating of the Caterpillar 307D?

The source data does not provide power rating information for the Caterpillar 307D.

How much is a Caterpillar 307D Crawler excavator (2008u20132025) worth?

The residual value of the Caterpillar 307D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
