30700 Caterpillar excavator specs & Dimensions (2017 - 2026)

Caterpillar 30700 is a Crawler Excavator manufactured since 2017. It has a weight of 7.27 tons and a track width of 450 mm. The tr…

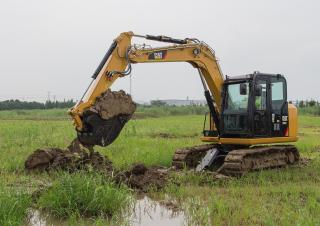

Caterpillar 30700 is a Crawler Excavator manufactured since 2017. It has a weight of 7.27 tons and a track width of 450 mm. The transport dimensions are 6.08 meters in length, 2.2 meters in width, and 2.63 meters in height. The machine features a tear-out force of 50.6 kN, a dredging depth of 4.07 meters, and a maximum horizontal reach of 6.3 meters. The bucket capacity is 0.3 cubic meters. Special equipment includes a blade and track adjustment.

Crawler Excavators Caterpillar 30700

Technical specs - 30700 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.27 t
Transport length
6.08 m
Transport width
2.2 m
Transport height
2.63 m
Bucket capacity
0.3 m³
Track width
450 mm
Max. Reach horizontal
6.3 m
Dredging depth
4.07 m
Tear-out force
50.6 kN
Engine manuf.
Caterpillar
Engine type
C2.4 Turbo
Engine power
37.7 kW
Displacement
2.4 l
Cylinder bore x stroke
87x102.4 mm
Emission level
U.S. EPA Tier 4 Final / EU IIIB

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 30700 FAQ

When was the Caterpillar 30700 manufactured?

The Caterpillar 30700 was first produced in 2017.

How much does the Caterpillar 30700 weigh?

The Caterpillar 30700 weighs 7.27 tons.

What are the transport dimensions of the Caterpillar 30700?

The Caterpillar 30700 has a transport length of 6.08 meters, a width of 2.2 meters, and a height of 2.63 meters.

What is the track width of the Caterpillar 30700 crawler excavator?

The Caterpillar 30700 crawler excavator has a track width of 450 mm.

What is the excavation performance of the Caterpillar 30700?

The Caterpillar 30700 has a dredging depth of 4.07 meters and a maximum horizontal reach of 6.3 meters.

What is the tear-out force of the Caterpillar 30700?

The Caterpillar 30700 has a tear-out force of 50.6 kN.

What is the bucket capacity of the Caterpillar 30700 excavator?

The Caterpillar 30700 excavator has a bucket capacity of 0.3 cubic meters.

How much is a Caterpillar 30700 Crawler excavator (2017u20132025) worth?

The residual value of the Caterpillar 30700 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
