235 Caterpillar excavator specs & Dimensions (1981 - 2026)

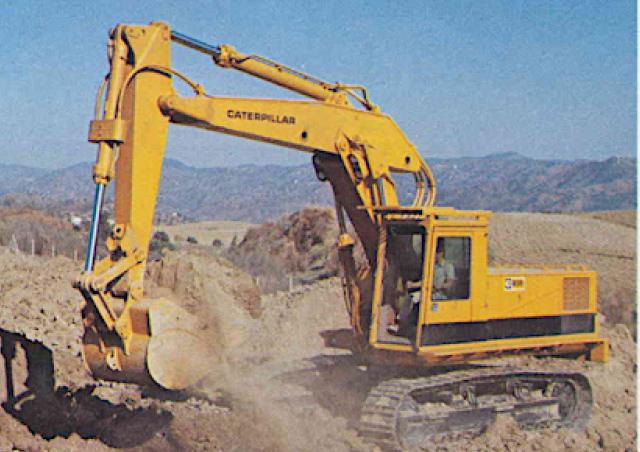

Caterpillar 235 is a crawler excavator manufactured since 1981. It has a weight of 37 tons and a track width of 760 mm. The transp…

Caterpillar 235 is a crawler excavator manufactured since 1981. It has a weight of 37 tons and a track width of 760 mm. The transport dimensions are 11.46 meters in length, 3.46 meters in width, and 3.48 meters in height. The dredging depth is 8.1 meters, with a maximum horizontal reach of 11.9 meters. The bucket width is 1.22 meters, with a capacity ranging from 0.76 to 1.12 cubic meters.

Crawler Excavators Caterpillar 235

Technical specs - 235 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37 t
Transport length
11.46 m
Transport width
3.46 m
Transport height
3.48 m
Bucket capacity min.
0.76 m³
Bucket capacity max.
1.12 m³
Track width
760 mm
Max. Reach horizontal
11.9 m
Dredging depth
8.1 m
Bucket width
1.22 m
Engine manuf.
Caterpillar
Engine type
3306
Engine power
145 kW
Displacement
10.5 l
No. of cylinders
6
Cylinder bore x stroke
121x152 mm

More technical details, like: bucket capacity, undercarriage, boom, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 235 FAQ

When was the Caterpillar 235 manufactured?

The Caterpillar 235 was first produced in 1981.

How much does the Caterpillar 235 weigh?

The Caterpillar 235 weighs 37 tons.

What are the transport dimensions of the Caterpillar 235 crawler excavator?

The Caterpillar 235 crawler excavator has a transport length of 11.46 meters, a transport width of 3.46 meters, and a transport height of 3.48 meters.

What is the track width of the Caterpillar 235's undercarriage?

The Caterpillar 235 has a track width of 760 mm.

What are the dredging depth and maximum horizontal reach of the Caterpillar 235?

The Caterpillar 235 has a dredging depth of 8.1 meters and a maximum horizontal reach of 11.9 meters.

What are the bucket specifications of the Caterpillar 235 crawler excavator?

The Caterpillar 235 crawler excavator has a bucket width of 1.22 meters, with a maximum capacity of 1.12 cubic meters and a minimum capacity of 0.76 cubic meters.
