213LC Caterpillar excavator specs & Dimensions (1985 - 2026)

Caterpillar 213LC is a crawler excavator manufactured since 1985, with a weight of 17.3 tons. It features a track width of 500 mm,…

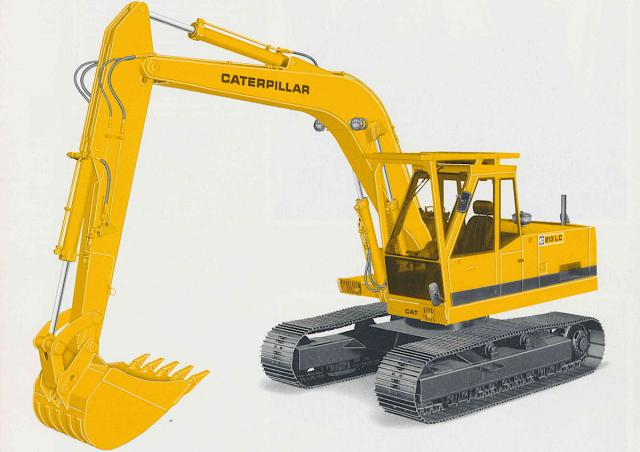

Caterpillar 213LC is a crawler excavator manufactured since 1985, with a weight of 17.3 tons. It features a track width of 500 mm, a transport length of 8.28 meters, a transport width of 2.4 meters, and a transport height of 2.96 meters. The bucket width is 1.41 meters, with a bucket capacity ranging from 0.25 cubic meters to 0.86 cubic meters.

Crawler Excavators Caterpillar 213LC

Technical specs - 213LC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.3 t
Transport length
8.28 m
Transport width
2.4 m
Transport height
2.96 m
Bucket capacity min.
0.25 m³
Bucket capacity max.
0.86 m³
Track width
500 mm
Bucket width
1.41 m
Engine manuf.
Perkins
Engine type
6.354.4P
Engine power
76 kW
Displacement
5.8 l
No. of cylinders
6
Cylinder bore x stroke
98.4x127 mm

More technical details, like: bucket capacity, undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 213LC FAQ

When was the Caterpillar 213LC manufactured?

The Caterpillar 213LC was first produced in 1985.

How much does the Caterpillar 213LC weigh?

The Caterpillar 213LC weighs 17.3 tons.

What are the transport dimensions of the Caterpillar 213LC?

The Caterpillar 213LC has a transport length of 8.28 meters, a transport width of 2.4 meters, and a transport height of 2.96 meters.

What is the track width of the Caterpillar 213LC's undercarriage?

The Caterpillar 213LC has a track width of 500 mm.

What are the specifications of the primary work tool bucket on the Caterpillar 213LC?

The Caterpillar 213LC has a bucket with a maximum capacity of 0.86 cubic meters, a minimum capacity of 0.25 cubic meters, and a width of 1.41 meters.

How much is a Caterpillar 213LC Crawler excavator (1985u20132025) worth?

The residual value of the Caterpillar 213LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
