211 Caterpillar excavator specs & Dimensions (1984 - 2026)

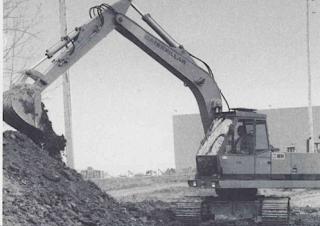

Caterpillar 211 is a crawler excavator manufactured since 1984. It has a weight of 14.7 tons and a track width of 500 mm. The tran…

Caterpillar 211 is a crawler excavator manufactured since 1984. It has a weight of 14.7 tons and a track width of 500 mm. The transport dimensions are 8 meters in length, 2.4 meters in width, and 2.77 meters in height. The bucket width is 1.4 meters, with a bucket capacity ranging from 0.25 m³ to 0.86 m³.

Crawler Excavators Caterpillar 211

Technical specs - 211 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.7 t
Transport length
8 m
Transport width
2.4 m
Transport height
2.77 m
Bucket capacity min.
0.25 m³
Bucket capacity max.
0.86 m³
Track width
500 mm
Bucket width
1.4 m
Engine manuf.
Deutz
Engine type
F5L 912
Engine power
63 kW
Displacement
4.71 l
No. of cylinders
5
Cylinder bore x stroke
100x120 mm

More technical details, like: bucket capacity, undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 211 FAQ

When was the Caterpillar 211 manufactured?

The Caterpillar 211 was first produced in 1984.

How much does the Caterpillar 211 weigh?

The Caterpillar 211 weighs 14.7 tons.

What are the transport dimensions of the Caterpillar 211?

The Caterpillar 211 has a transport length of 8 meters, a transport width of 2.4 meters, and a transport height of 2.77 meters.

What is the track width of the Caterpillar 211's undercarriage?

The Caterpillar 211 has a track width of 500 mm on its undercarriage.

What are the bucket specifications of the Caterpillar 211 crawler excavator?

The Caterpillar 211 crawler excavator has a bucket width of 1.4 meters, with a capacity ranging from 0.25 to 0.86 cubic meters.
