CX85D SR Case excavator specs & Dimensions (2019 - 2026)

Case CX85D SR is a Crawler Excavator manufactured since 2019. It has a weight of 8 tons and a track width of 450 mm. The transport…

Case CX85D SR is a Crawler Excavator manufactured since 2019. It has a weight of 8 tons and a track width of 450 mm. The transport dimensions are 5.755 meters in length, 2.32 meters in width, and 2.76 meters in height. The excavator features a tear-out force of 56.9 kN, a dredging depth of 4.13 meters, and a maximum horizontal reach of 6.41 meters. The bucket width is 0.8 meters with a capacity of 0.28 cubic meters. Special equipment includes air conditioning, a blade, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

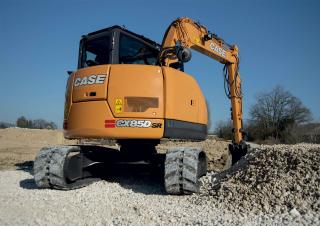

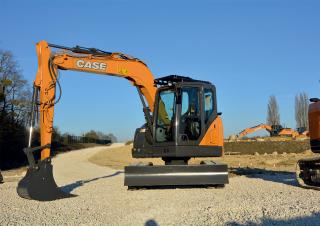

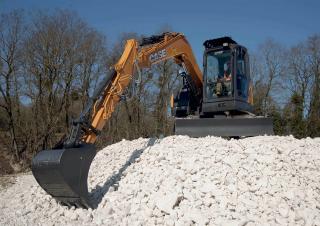

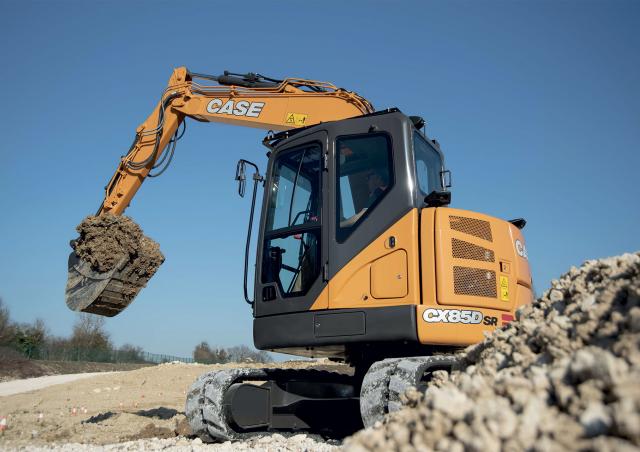

Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR
Crawler Excavators Case CX85D SR

Technical specs - CX85D SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8 t
Transport length
5.755 m
Transport width
2.32 m
Transport height
2.76 m
Bucket capacity
0.28 m³
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.41 m
Dredging depth
4.13 m
Tear-out force
56.9 kN
Bucket width
0.8 m
Model series
D
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
50.7 kW
Displacement
2.179 l
Revolutions at max torque
1800 rpm
Max. torque
193 Nm
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX85D SR FAQ

When was the Case CX85D SR manufactured?

The Case CX85D SR was first produced in 2019.

How much does the Case CX85D SR weigh?

The Case CX85D SR weighs 8 tons.

What are the transport dimensions of the Case CX85D SR?

The Case CX85D SR has a transport length of 5.76 meters, a transport width of 2.32 meters, and a transport height of 2.76 meters.

What is the track width of the Case CX85D SR's undercarriage?

The Case CX85D SR has a track width of 450 mm.

What are the excavation performance specifications of the Case CX85D SR?

The Case CX85D SR has a dredging depth of 4.13 meters, a maximum horizontal reach of 6.41 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX85D SR?

The Case CX85D SR has a tear-out force of 56.9 kN. The source data does not provide power rating information for this machine.

What are the specifications of the primary work tool bucket on the Case CX85D SR?

The primary work tool bucket of the Case CX85D SR has a capacity of 0.28 cubic meters and a width of 0.8 meters.

How much is a Case CX85D SR Crawler excavator (2019u20132025) worth?

The residual value of the Case CX85D SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
