CX800B Case excavator specs & Dimensions (2021 - 2026)

Case CX800B is a Crawler Excavator manufactured since 2021. It has a weight of 9.64 tons and a track width of 750 mm. The transpor…

Case CX800B is a Crawler Excavator manufactured since 2021. It has a weight of 9.64 tons and a track width of 750 mm. The transport dimensions are 13.92 meters in length, 4.36 meters in width, and 3.61 meters in height. The machine features a tear-out force of 330 kN, a dredging depth of 10.56 meters, and a maximum horizontal reach of 16.11 meters. The bucket width is 2.13 meters, with a capacity range from 1.93 cubic meters to 4.52 cubic meters.

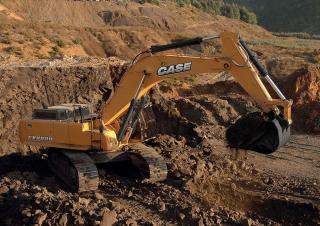

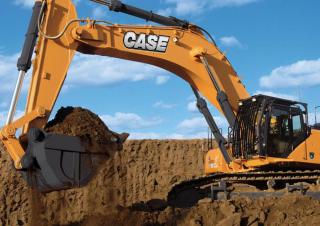

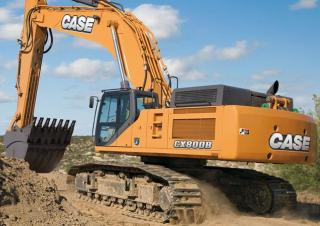

Crawler Excavators Case CX800B
Crawler Excavators Case CX800B
Crawler Excavators Case CX800B
Crawler Excavators Case CX800B
Crawler Excavators Case CX800B
Crawler Excavators Case CX800B
Crawler Excavators Case CX800B
Crawler Excavators Case CX800B

Technical specs - CX800B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.64 t
Transport length
13.92 m
Transport width
4.36 m
Transport height
3.61 m
Bucket capacity min.
1.93 m³
Bucket capacity max.
4.52 m³
Track width
750 mm
Max. Reach horizontal
16.11 m
Dredging depth
10.56 m
Tear-out force
330 kN
Bucket width
2.13 m
Model series
B
Engine manuf.
Isuzu
Engine type
AH-6WG1XYSS
Engine power
397 kW
Displacement
15.7 l
Revolutions at max torque
1500 rpm
Max. torque
2250 Nm
No. of cylinders
6
Cylinder bore x stroke
147x154 mm
Emission level
Tier III

More technical details, like: bucket capacity, undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX800B FAQ

When was the Case CX800B manufactured?

The Case CX800B was first produced in 2021.

How much does the Case CX800B weigh?

The Case CX800B weighs 9.64 tons.

What are the transport dimensions of the Case CX800B crawler excavator?

The Case CX800B crawler excavator has a transport length of 13.92 meters, a transport width of 4.36 meters, and a transport height of 3.61 meters.

What is the track width of the Case CX800B's undercarriage?

The Case CX800B has a track width of 750 mm.

What are the excavation performance specifications of the Case CX800B?

The Case CX800B has a dredging depth of 10.56 meters and a maximum horizontal reach of 16.11 meters.

What is the tear-out force of the Case CX800B?

The Case CX800B has a tear-out force of 330 kN.

What are the bucket specifications of the Case CX800B crawler excavator?

The Case CX800B crawler excavator has a bucket width of 2.13 meters, with a bucket capacity ranging from 1.93 to 4.52 cubic meters.

How much is a Case CX800B Crawler excavator (2021u20132025) worth?

The residual value of the Case CX800B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
