CX750D ME Case excavator specs & Dimensions (2019 - 2026)

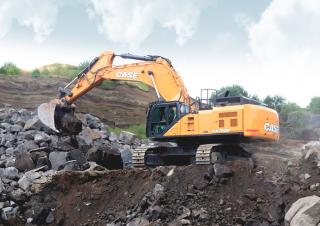

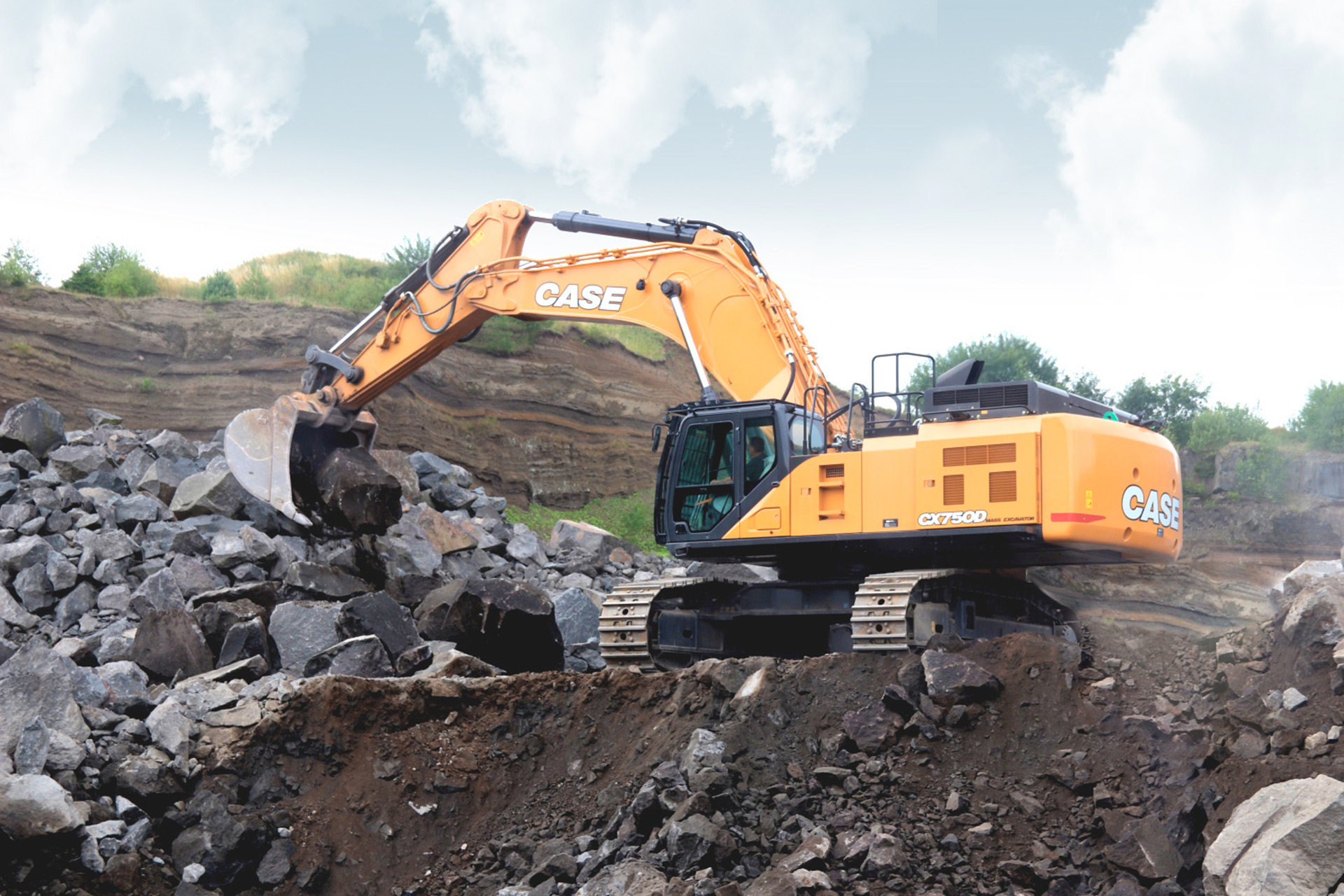

Case CX750D ME is a Crawler Excavator manufactured since 2019. It has a weight of 72 tons and a track width of 650 mm. The transpo…

Case CX750D ME is a Crawler Excavator manufactured since 2019. It has a weight of 72 tons and a track width of 650 mm. The transport dimensions are 12.25 meters in length, 4.17 meters in width, and 4.96 meters in height. The excavator features a tear-out force of 335 kN, a dredging depth of 7.18 meters, and a maximum horizontal reach of 11.73 meters. The bucket capacity is 4 cubic meters. Special equipment includes air conditioning, material handling capabilities, and track adjustment.

Crawler Excavators Case CX750D ME

Technical specs - CX750D ME Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
72 t
Transport length
12.25 m
Transport width
4.17 m
Transport height
4.96 m
Bucket capacity
4 m³
Undercarriage
LCV
Track width
650 mm
Boom
MB
Max. Reach horizontal
11.73 m
Dredging depth
7.18 m
Tear-out force
335 kN
Model series
D
Engine manuf.
Isuzu
Engine type
AH 6 WG 1 X
Engine power
382 kW
Displacement
15.7 l
Revolutions at max torque
1450 rpm
Max. torque
2200 Nm
No. of cylinders
6
Cylinder bore x stroke
147x154 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX750D ME FAQ

When was the Case CX750D ME manufactured?

The Case CX750D ME was first produced in 2019.

How much does the Case CX750D ME crawler excavator weigh?

The Case CX750D ME crawler excavator weighs 72 tons.

What are the transport dimensions of the Case CX750D ME crawler excavator?

The Case CX750D ME crawler excavator has a transport length of 12.25 meters, a transport width of 4.17 meters, and a transport height of 4.96 meters.

What are the undercarriage specifications of the Case CX750D ME crawler excavator?

The Case CX750D ME crawler excavator has a track width of 650 mm and features a long, hydraulically extendable undercarriage.

What are the excavation performance specifications of the Case CX750D ME crawler excavator?

The Case CX750D ME crawler excavator has a dredging depth of 7.18 meters, a maximum horizontal reach of 11.73 meters, and features a monobloc boom.

What is the tear-out force of the Case CX750D ME?

The Case CX750D ME has a tear-out force of 335 kN. Note that the source data does not provide any power ratings for this machine.

What is the bucket capacity of the Case CX750D ME excavator?

The Case CX750D ME excavator has a bucket capacity of 4 cubic meters.

How much is a Case CX750Du00a0ME Crawler excavator (2019u20132025) worth?

The residual value of the Case CX750Du00a0ME depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
