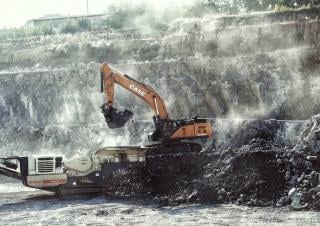

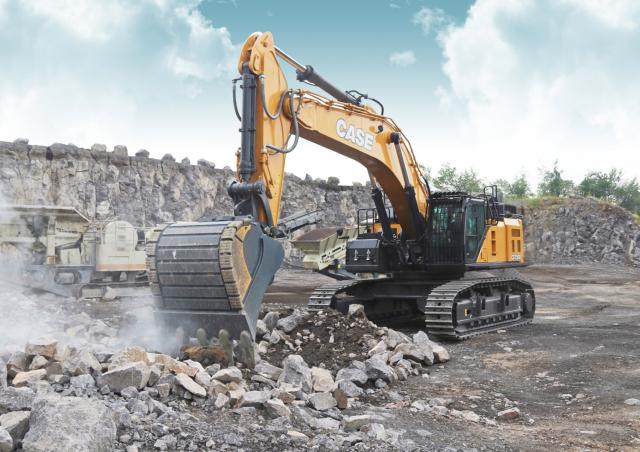

CX750D Case excavator specs & Dimensions (2019 - 2026)

Fast cycles

The new electrically controlled pumps deliver faster cycle times. Oil flow can be adjusted according to working needs, or increased smoothly while starting travel and boom down. As a result, the machine responsiveness to operation load is multiplied, resulting in cycle times 11% faster than the previous generation.

High precision and controllability

Smooth control with the CASE Intelligent Hydraulic System. The proven CASE Intelligent Hydraulic System (CIHS) delivers energy savings in all cycle time phases (digging, boom up and swing, dumping).

High versatility

A MODE for grading, lifting and precision work.H MODE provides the best balance between productivity and fuel economy.SP MODE offers extra speed and power for the most demanding jobs that require maximum productivity. Auto Power Boost automatically increases hydraulic pressure according to the operation’s demands.

High efficiency: the secret

The CASE Intelligent Hydraulic System (CIHS) continuously reads the load pressure through strategic sensors and, like an ORCHESTRA DIRECTOR, always provides the right balance in real time for any type of job, offering solid fuel saving opportunities. It consists of 5 Energy Saving controls:Torque control decreases main pump loads to prevent a drop in engine rpm, with improved sensitivity to control.Boom Economy Control (BEC) increases fuel efficiency during boom lower and swing operations, such as dump unloading.Swing Relief Control (SWC) carefully manages the hydraulic power distribution in slewing operations.Spool Stroke Control (SSC) creates an automatic pressure adjustment during digging and leveling operations.Idle functions: the Auto Idle function lowers engine rpm after 5 seconds of lever inactivity, regardless of the throttle position, while the Idle Shutdown function shuts the engine down after a pre-set time of inactivity. Both are manually switchable.

Standard hydraulic reversible fan

Engine layout inversion:The new layout made it possible to accommodate two wider radiators with tank & oil cooler / fuel cooler in parallel location opposite the Cabin, assuring better cooling performance.The hydraulically-driven cooling fan contributes to lower noise output and improvements in fuel consumption. The reversing mode helps to reduce maintenance needs.

Easy maintenance

CASE stays «grounded» All filters and regular fill points are grouped for easy access. Engine oil change intervals set at 500 hours. Radiator and cooler mounted side by side for easy access. Standard 100 l/min refueling pump with automatic cut off. Optional hydraulic and engine oil sampling port for easy oil check. Battery Shutdown Switch for safe maintenance on the electrical system. All the D-series crawler excavators feature the Extended Maintenance System (EMS) bushings, providing 1,000 hour greasing intervals on all pins except the attachment linkage.

High reliability

Improved Design for Durable performances The boom and arm have been redesigned according to the latest stress analysis criteria to reduce stress points. The undercarriage is built with high-tensile strength steel for long term durability to work in the toughest heavy duty applications.

High quality

Accurate, simple and robust design for high durability True to CASE’s enviable reputation for reliability and durability, the D-Series delivers leading design solutions and manufacturing quality.

Optimized retractable undercarriage

Increased track gauge width (3350 mm) for better lifting capacity. Width with retracted condition during transportation is 2740 mm.

Cx750d me mass excavator

A dedicated model for mass excavation provides outstanding breakout force performance. With a special heavy duty shorter boom and dipper and a bigger bucket cylinder and optimized kinematics, the CX750D ME works with larger buckets than the CX750D, delivering industry leading speed, productivity and efficiency.

Comfortable and safe cab

Superior cab structure with ample legroom for the operator. Fully adjustable workstation. New ergonomically designed high back seat with air suspension for excellent comfort. Optional seat tilting adjustment and seat heater. Top class features include the 178 mm colour LED Monitor, bluetooth tuner and Radio, spacious storage compartment, 12v accessory plug, clipboard holder, mobile phone holder, warm and cool box, fuse box service connection, storage tray and ergonomic arm rest. FOPS level II standard. Wide offering of optional front guards.

Case maximum view monitor

Option with its bird’s eye and panoramic view improves operator’s safety by: 270° wide vision 3 cameras 7 inch full color monitor Blind spots eliminated by image processing Led lighting package LED lights for increased visibility in low light conditions

Safe access to uppercarriage

Solid and robust platform and handrails Wide, robust and comfortable steps and ladders for safe access to the top of the hood. Solid handrail for protection on the top of the hood. Non-slip plates and top hood cover are supported by 2 gas pistons and secured by 2 mechanical stops when open. Solid platform (80 cm wide) on top of the engine compartment to provide a stable base for the technician working on the engine compartment.
