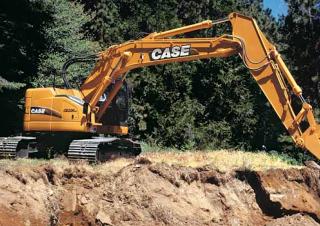

CX75 Case excavator specs & Dimensions (2008 - 2015)

Case CX75 is a Crawler Excavator manufactured from 2008 to 2015. It has a weight of 7.92 tons and a track width of 450 mm. The tra…

Case CX75 is a Crawler Excavator manufactured from 2008 to 2015. It has a weight of 7.92 tons and a track width of 450 mm. The transport dimensions are 5.92 meters in length, 2.32 meters in width, and 2.7 meters in height. The excavator features a tear-out force of 56.9 kN, a dredging depth of 4.14 meters, and a maximum horizontal reach of 6.52 meters. The bucket width is 0.76 meters, with a capacity ranging from 0.18 to 0.34 cubic meters.

Crawler Excavators Case CX75

Technical specs - CX75 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.92 t
Transport length
5.92 m
Transport width
2.32 m
Transport height
2.7 m
Bucket capacity
0.34 m³
Bucket capacity min.
0.18 m³
Bucket capacity max.
0.34 m³
Track width
450 mm
Max. Reach horizontal
6.52 m
Dredging depth
4.14 m
Tear-out force
56.9 kN
Bucket width
0.76 m
Engine manuf.
Isuzu
Engine type
AU-4LE2X
Engine power
40 kW
Revolutions at max torque
1500 rpm

More technical details, like: undercarriage, boom, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX75 FAQ

When was the Case CX75 manufactured?

The Case CX75 was manufactured from 2008 to 2015.

How much does the Case CX75 crawler excavator weigh?

The Case CX75 crawler excavator weighs 7.92 tons.

What are the transport dimensions of the Case CX75 crawler excavator?

The Case CX75 crawler excavator has a transport length of 5.92 meters, a transport width of 2.32 meters, and a transport height of 2.7 meters.

What is the track width of the Case CX75's undercarriage?

The Case CX75 has a track width of 450 mm.

What is the excavation performance of the Case CX75 crawler excavator?

The Case CX75 crawler excavator has a dredging depth of 4.14 meters and a maximum horizontal reach of 6.52 meters.

What is the tear-out force of the Case CX75, given that no power rating data is available?

The Case CX75 has a tear-out force of 56.9 kN. No power rating data is provided in the source information.

What are the specifications of the primary work tool bucket on the Case CX75?

The Case CX75 has a bucket with a capacity ranging from 0.18 to 0.34 cubic meters and a bucket width of 0.76 meters.

How much is a Case CX75 Crawler excavator (2008u20132015) worth?

The residual value of the Case CX75 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
