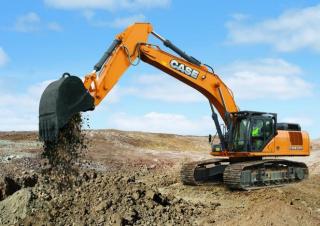

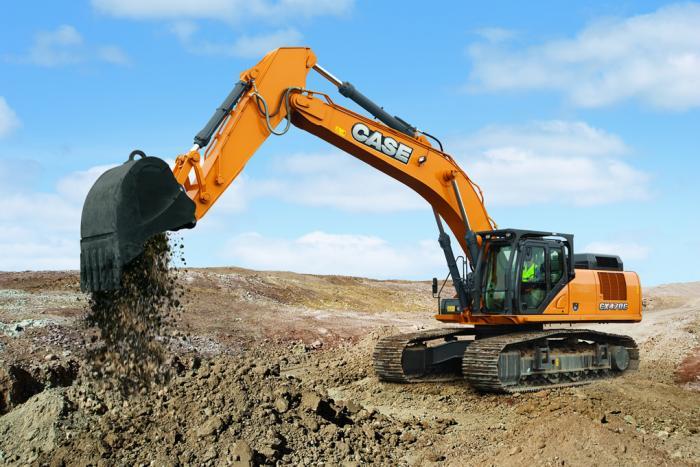

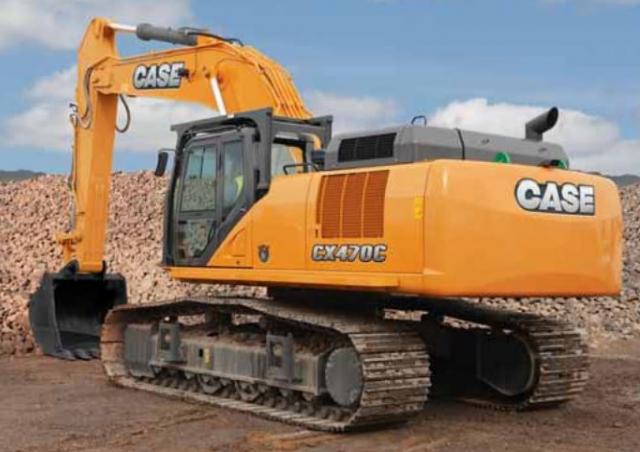

Case CX470C  excavator specs (2015 - 2017)

Case CX470C is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 49.3 tons and a track width of 600 mm. The t…

Case CX470C is a Crawler Excavator manufactured from 2015 to 2017. It has a weight of 49.3 tons and a track width of 600 mm. The transport dimensions are 12 meters in length, 3.35 meters in width, and 4.3 meters in height. The excavator features a tear-out force of 229 kN, a dredging depth of 7.55 meters, and a maximum horizontal reach of 12 meters. The bucket width is 2 meters with a capacity of 2.1 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, and track adjustment.

Technical specs - CX470C  Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
49.3 t
Transport length
12 m
Transport width
3.35 m
Transport height
4.3 m
Bucket capacity
2.1 m³
Undercarriage
LCV
Track width
600 mm
Boom
MB
Max. Reach horizontal
12 m
Dredging depth
7.55 m
Tear-out force
229 kN
Bucket width
2 m
Model series
C
Engine manuf.
Isuzu
Engine type
AL 6 UZ 1 X
Engine power
270 kW
Displacement
9.8 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No
