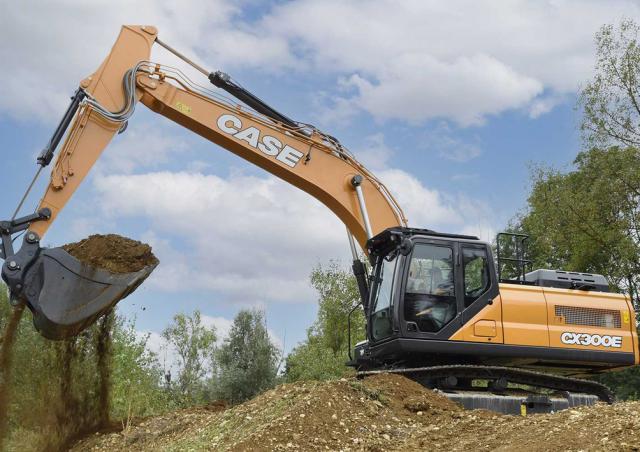

CX300E Case excavator specs & Dimensions (2021 - 2026)

Case CX300E is a Crawler Excavator manufactured since 2021. It has a weight of 29.7 tons and a track width of 600 mm. The transpor…

Case CX300E is a Crawler Excavator manufactured since 2021. It has a weight of 29.7 tons and a track width of 600 mm. The transport dimensions are 10.61 meters in length, 3.2 meters in width, and 3.33 meters in height. The excavator features a tear-out force of 175 kN, a dredging depth of 7.1 meters, and a maximum horizontal reach of 10.49 meters. The bucket width is 1.35 meters with a capacity of 1.1 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX300E

Technical specs - CX300E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.7 t
Transport length
10.61 m
Transport width
3.2 m
Transport height
3.33 m
Bucket capacity
1.1 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.49 m
Dredging depth
7.1 m
Tear-out force
175 kN
Bucket width
1.35 m
Model series
E
Engine manuf.
FPT
Engine type
NEF6
Engine power
193.4 kW
Displacement
6.7 l
Revolutions at max torque
1500 rpm
Max. torque
999 Nm
No. of cylinders
6
Cylinder bore x stroke
104 x 132 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Case CX300E FAQ

When was the Case CX300E manufactured?

The Case CX300E was first produced in 2021.

How much does the Case CX300E weigh?

The Case CX300E weighs 29.7 tons.

What are the transport dimensions of the Case CX300E crawler excavator?

The Case CX300E has a transport length of 10.61 meters, a transport width of 3.2 meters, and a transport height of 3.33 meters.

What are the undercarriage specifications of the Case CX300E?

The Case CX300E has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX300E?

The Case CX300E has a dredging depth of 7.1 meters, a maximum horizontal reach of 10.49 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Case CX300E?

The Case CX300E has a tear-out force of 175 kN.

What are the bucket specifications of the Case CX300E crawler excavator?

The Case CX300E crawler excavator has a bucket capacity of 1.1 cubic meters and a bucket width of 1.35 meters.
