CX300D Case excavator specs & Dimensions (2015 - 2020)

Case CX300D is a Crawler Excavator manufactured from 2015 to 2023, with a weight of 29.9 tons. It features a track width of 600 mm…

Case CX300D is a Crawler Excavator manufactured from 2015 to 2023, with a weight of 29.9 tons. It features a track width of 600 mm, a transport length of 10.51 meters, a transport width of 2.99 meters, and a transport height of 3.42 meters. The machine has a tear-out force of 175 kN, a dredging depth of 7.1 meters, and a maximum horizontal reach of 10.49 meters. The bucket width is 1.1 meters, with a bucket capacity of 1.1 cubic meters. Special equipment includes air conditioning, overload alert, and a hydraulic quick hitch.

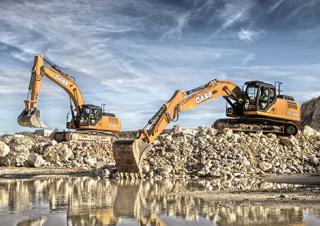

Crawler Excavators Case CX300D
Crawler Excavators Case CX300D
Crawler Excavators Case CX300D
Crawler Excavators Case CX300D

Technical specs - CX300D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.9 t
Transport length
10.51 m
Transport width
2.99 m
Transport height
3.42 m
Bucket capacity
1.1 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.49 m
Dredging depth
7.1 m
Tear-out force
175 kN
Bucket width
1.1 m
Model series
D
Engine manuf.
Isuzu
Engine type
AQ 6 HK 1
Engine power
154 kW
Displacement
7.79 l
Revolutions at max torque
1500 rpm
Max. torque
849 Nm
No. of cylinders
6
Cylinder bore x stroke
115x125 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX300D FAQ

When was the Case CX300D manufactured?

The Case CX300D was manufactured from 2015 to 2020.

How much does the Case CX300D weigh?

The Case CX300D weighs 29.9 tons.

What are the transport dimensions of the Case CX300D crawler excavator?

The Case CX300D crawler excavator has a transport length of 10.51 meters, a transport width of 2.99 meters, and a transport height of 3.42 meters.

What are the undercarriage specifications of the Case CX300D?

The Case CX300D has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX300D?

The Case CX300D has a dredging depth of 7.1 meters, a maximum horizontal reach of 10.49 meters, and features a monobloc boom.

What is the tear-out force of the Case CX300D crawler excavator?

The Case CX300D crawler excavator has a tear-out force of 175 kN. The source data does not provide power ratings such as engine power or horsepower.

What are the specifications of the primary work tool bucket on the Case CX300D?

The primary work tool bucket of the Case CX300D has a capacity of 1.1 cubic meters and a width of 1.1 meters.

How much is a Case CX300D Crawler excavator (2015u20132020) worth?

The residual value of the Case CX300D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
