CX250E Case excavator specs & Dimensions (2022 - 2026)

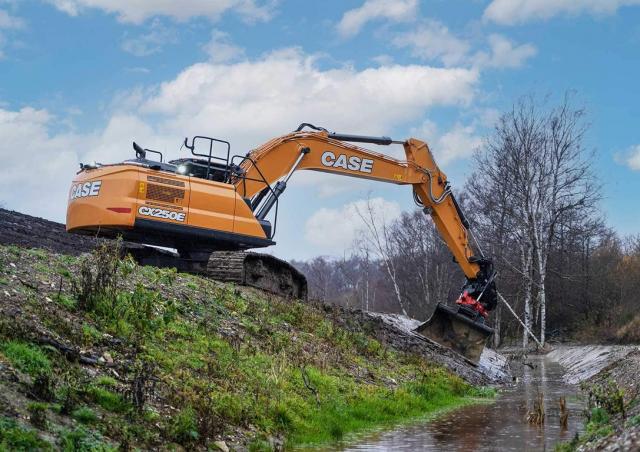

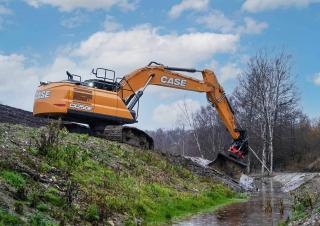

Case CX250E is a Crawler Excavator manufactured since 2022, with a weight of 28.3 tons. It features a track width of 800 mm, a tra…

Case CX250E is a Crawler Excavator manufactured since 2022, with a weight of 28.3 tons. It features a track width of 800 mm, a transport length of 14.38 meters, a transport width of 3.39 meters, and a transport height of 3.22 meters. The machine has a tear-out force of 77 kN, a dredging depth of 14.56 meters, and a maximum horizontal reach of 18.22 meters. The bucket width is 0.8 meters with a capacity of 0.37 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX250E

Technical specs - CX250E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.3 t
Transport length
14.38 m
Transport width
3.39 m
Transport height
3.22 m
Bucket capacity
0.37 m³
Undercarriage
SL
Track width
800 mm
Boom
MB
Max. Reach horizontal
18.22 m
Dredging depth
14.56 m
Tear-out force
77 kN
Bucket width
0.8 m
Model series
E
Engine manuf.
FPT
Engine type
NEF6
Engine power
133.4 kW
Displacement
6.7 l
Revolutions at max torque
1800 rpm
Max. torque
642 Nm
No. of cylinders
6
Cylinder bore x stroke
104x132 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Case CX250E FAQ

When was the Case CX250E manufactured?

The Case CX250E was first produced in 2022.

How much does the Case CX250E weigh?

The Case CX250E weighs 28.3 tons.

What are the transport dimensions of the Case CX250E crawler excavator?

The Case CX250E has a transport length of 14.38 meters, a transport width of 3.39 meters, and a transport height of 3.22 meters.

What are the undercarriage specifications of the Case CX250E?

The Case CX250E has a standard undercarriage with a track width of 800 mm.

What are the excavation performance specifications of the Case CX250E?

The Case CX250E has a dredging depth of 14.56 meters, a maximum horizontal reach of 18.22 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX250E?

The Case CX250E has a tear-out force of 77 kN.

What are the bucket specifications of the Case CX250E crawler excavator?

The Case CX250E has a bucket capacity of 0.37 cubic meters and a bucket width of 0.8 meters.

How much is a Case CX250E Crawler excavator (2022u20132025) worth?

The residual value of the Case CX250E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
