CX180D Case excavator specs & Dimensions (2016 - 2021)

Case CX180D is a crawler excavator manufactured from 2016 to 2023. It has a weight of 18.5 tons and a track width of 600 mm. The t…

Case CX180D is a crawler excavator manufactured from 2016 to 2023. It has a weight of 18.5 tons and a track width of 600 mm. The transport dimensions are 8.46 meters in length, 2.8 meters in width, and 3.28 meters in height. The machine features a tear-out force of 112 kN, a dredging depth of 6.04 meters, and a maximum horizontal reach of 8.87 meters. The bucket width is 0.9 meters with a capacity of 0.62 cubic meters. Special equipment includes air conditioning, overload alert, and a hydraulic quick hitch.

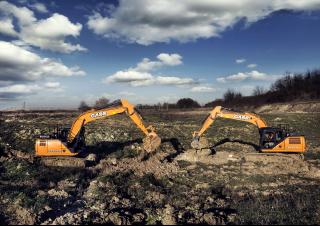

Crawler Excavators Case CX180D

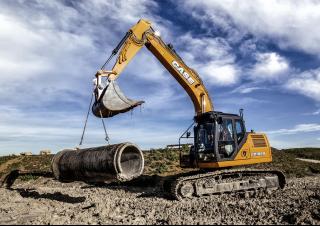

Crawler Excavators Case CX180D

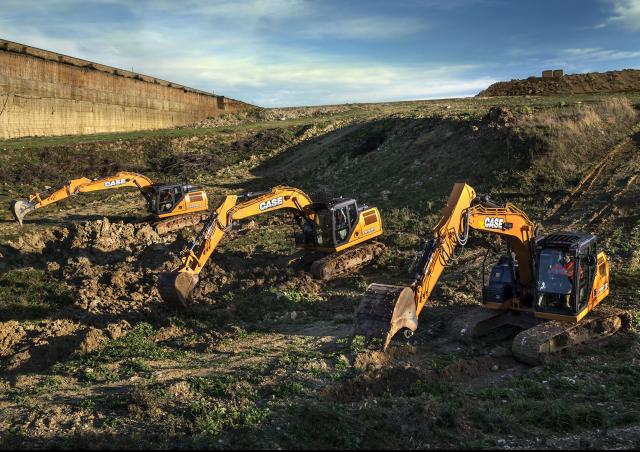

Crawler Excavators Case CX180D
Crawler Excavators Case CX180D
Crawler Excavators Case CX180D
Crawler Excavators Case CX180D

Technical specs - CX180D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.5 t
Transport length
8.46 m
Transport width
2.8 m
Transport height
3.28 m
Bucket capacity
0.62 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.87 m
Dredging depth
6.04 m
Tear-out force
112 kN
Bucket width
0.9 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR 4JJ1X
Engine power
83.2 kW
Displacement
2.99 l
Revolutions at max torque
2200 rpm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX180D FAQ

When was the Case CX180D manufactured?

The Case CX180D was manufactured from 2016 to 2021.

How much does the Case CX180D weigh?

The Case CX180D weighs 18.5 tons.

What are the transport dimensions of the Case CX180D crawler excavator?

The Case CX180D has a transport length of 8.46 meters, a transport width of 2.8 meters, and a transport height of 3.28 meters.

What are the undercarriage specifications of the Case CX180D?

The Case CX180D has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX180D?

The Case CX180D has a dredging depth of 6.04 meters, a maximum horizontal reach of 8.87 meters, and features a monobloc boom.

What is the power rating of the Case CX180D?

Power rating data for the Case CX180D is not available in the provided information.

What are the specifications of the primary work tool bucket on the Case CX180D?

The primary work tool bucket of the Case CX180D has a capacity of 0.62 cubic meters and a width of 0.9 meters.

How much is a Case CX180D Crawler excavator (2016u20132021) worth?

The residual value of the Case CX180D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
