CX170E Case excavator specs & Dimensions (2023 - 2026)

Weight: 17.4t – Transport length: 8.57m – Transport width: 2.59m – Transport height: 3.13m – Track width: 600mm – Max. Reach horiz…

Weight: 17.4t – Transport length: 8.57m – Transport width: 2.59m – Transport height: 3.13m – Track width: 600mm – Max. Reach horizontal: 9.22m

Check out detailed specifications, information and technical data for Case CX170E excavator manufactured between 2023 - 2026. Get more in-depth insight with Case CX170E digger specifications. See information, like: Weight: 17.4t – Transport length: 8.57m – Transport width: 2.59m – Transport height: 3.13m – Track width: 600mm – Max. Reach horizontal: 9.22m and more.

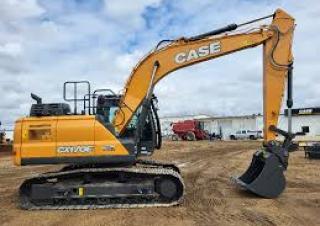

Crawler Excavators Case CX170E

Technical specs - CX170E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.4 t
Transport length
8.57 m
Transport width
2.59 m
Transport height
3.13 m
Track width
600 mm
Max. Reach horizontal
9.22 m
Dredging depth
6.49 m
Tear-out force
161 kN
Model series
CX
Engine manuf.
FPT
Engine type
NEF4
Engine power
97 kW
Displacement
4.49 l
Revolutions at max torque
2200 rpm
Max. torque
456 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
Tier 4 Final/Stage V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
Yes
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX170E FAQ

When was the Case CX170E manufactured?

The Case CX170E was first produced in 2023.

How much does the Case CX170E weigh?

The Case CX170E weighs 17.4 tons.

What are the transport dimensions of the Case CX170E crawler excavator?

The Case CX170E has a transport length of 8.57 meters, a transport width of 2.59 meters, and a transport height of 3.13 meters.

What is the track width of the Case CX170E's undercarriage?

The Case CX170E has a track width of 600 mm.

What are the excavation performance specifications of the Case CX170E?

The Case CX170E has a dredging depth of 6.49 meters and a maximum horizontal reach of 9.22 meters.

What is the tear-out force of the Case CX170E?

The Case CX170E has a tear-out force of 161 kN.
