CX160D Case excavator specs & Dimensions (2021 - 2021)

Case CX160D is a Crawler Excavator manufactured from 2021 to 2023. It has a weight of 17.4 tons and a track width of 600 mm. The t…

Case CX160D is a Crawler Excavator manufactured from 2021 to 2023. It has a weight of 17.4 tons and a track width of 600 mm. The transport dimensions are 8.46 meters in length, 2.59 meters in width, and 3.26 meters in height. The machine features a tear-out force of 112 kN, a dredging depth of 6.06 meters, and a maximum horizontal reach of 8.87 meters. The bucket width is 0.9 meters with a capacity of 0.62 cubic meters. Special equipment includes air conditioning, an overload alert, and a hydraulic quick hitch.

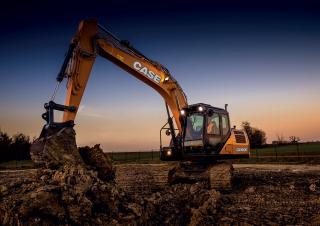

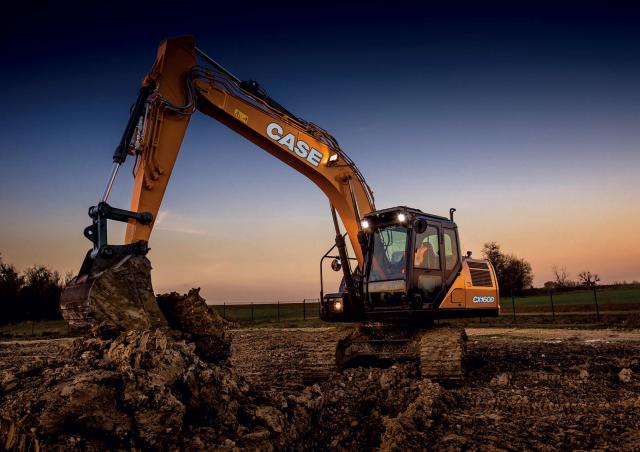

Crawler Excavators Case CX160D
Crawler Excavators Case CX160D
Crawler Excavators Case CX160D
Crawler Excavators Case CX160D
Crawler Excavators Case CX160D
Crawler Excavators Case CX160D

Technical specs - CX160D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.4 t
Transport length
8.46 m
Transport width
2.59 m
Transport height
3.26 m
Bucket capacity
0.62 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.87 m
Dredging depth
6.06 m
Tear-out force
112 kN
Bucket width
0.9 m
Model series
D
Engine manuf.
Isuzu
Engine type
AR-4JJ1X
Engine power
83.2 kW
Displacement
2.99 l
Revolutions at max torque
1800 rpm
Max. torque
349 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX160D FAQ

When was the Case CX160D manufactured?

The Case CX160D was produced in 2021, with production starting and ending in that year.

How much does the Case CX160D weigh?

The Case CX160D weighs 17.4 tons.

What are the transport dimensions of the Case CX160D crawler excavator?

The Case CX160D has a transport length of 8.46 meters, a transport width of 2.59 meters, and a transport height of 3.26 meters.

What are the undercarriage specifications of the Case CX160D?

The Case CX160D has a standard undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Case CX160D?

The Case CX160D has a dredging depth of 6.06 meters, a maximum horizontal reach of 8.87 meters, and features a monobloc boom.

What is the tear-out force of the Case CX160D?

The Case CX160D has a tear-out force of 112 kN.

What are the specifications of the primary work tool bucket on the Case CX160D?

The primary work tool bucket of the Case CX160D has a capacity of 0.62 cubic meters and a width of 0.9 meters.
