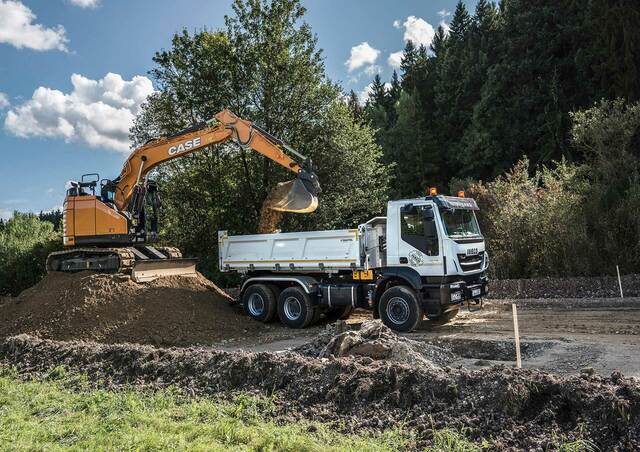

CX145D SR Case excavator specs & Dimensions (2021 - 2026)

New design

Upgraded recoil spring and rod design with a new double cross section internal plate to improve significantly muds and debris self cleaning and increases carrier roller durability.

Safe and easy maintenance

All filters and regular fill points are grouped for easy access. Engine oil change intervals set at 500 hours. Radiator and cooler cores mounted side by side for easy access for cleaning and more efficient cooling. Standard 100 l/min refueling pump with automatic cut off reduces downtime for regular fills. Optional hydraulic and engine oil sampling port accessible at ground level for easy oil check. Battery Shutdown Switch for safe maintenance on the electrical system. All the D-series crawler excavators feature the Extended Maintenance System (EMS) bushings, providing 1,000 hour greasing intervals on all pins except the attachment linkage. New Fuel filter supply line with no need to flush after filter replacement thanks to a safety filter (maintenance free). Fuel prefilter Water sensor with dedicated message on Cabin monitor.

Fast Cycles

High performance hydraulics control The electrically controlled pumps deliver faster cycle times. Oil flow can be adjusted according to working needs, or increased smoothly when starting travel and boom down. As a result, the machine responsiveness to operation load is multiplied, resulting in cycle times up to 5% faster than the previous generation.

High Versatility

Versions with and without blade, Mono boom, 2 piece boom and offset boom to match the different working needs. The familiar working mode systems offers 3 power modes to match different requirements. Auto Power boost automatically increases hydraulic pressure according to the operation’s demands. CASE interference device is standard in offset boom version, allowing the operator to use the attachment closer to cabin in fully safety. Transportation height is also reduced.

High Efficiency

CASE Intelligent Hydraulic System (CIHS) like an ORCHESTRA DIRECTOR coordinates the different components and makes them work in harmony. The result is that force is matched by manoeuvrability, delivering an impressive adaptive smooth control during each transition from one movement to another by ensuring that energy is saved in every cycle phase. The operator, even the most demanding, feels immediately in control of the machine’s huge power with the highest precision he can ever wish.

Comfortable and safe cab

Superior cab structure with ample legroom for the operator. Fully adjustable workstation Ergonomically designed highback seat with air suspension for excellent comfort. Optional seat tilting adjustment and seat heater. Top class features include 178 mm colour LED Monitor, bluetooth tuner and radio, spacious storage compartment, 12v accessory plug, clipboard holder, mobile phone holder, warm and cool box, fuse box service connection, storage tray and ergonomic arm rest.

Safe operation

Designed to provide superior safety on the job site while increasing productivity Reinforced cab structure compliant with ROPS/FOPS requirements. FOPS Level 2 certified top cab guard is STANDARD Wide offering of optional front guards. Optional factory fitted travel alarm for greater safety on the jobsite around the machine.

Outstanding visibility

Cab designed to create a perceptibly safe and secure working environment: Ample glazed surface Efficient use of space with grouped engine, cooling and after-treatment systems to provide excellent rear visibility. Rear & side view cameras as standard Optional CASE maximum view monitor (230° rear & side view) Optional LED lighting package provides a deeper and wider visibility coverage of the area around the machine when working after dark.

Safe access to uppercarriage

Wide, robust and comfortable steps for safe access to the top of the hood. Non-slip plates and top hood cover are supported by 2 gas pistons and secured by 2 mechanical stops when open. ISO Compliant and foldable Guard Rail & Hand Rail for more protection and easier transportability.
