CX145D SR Case excavator specs & Dimensions (2017 - 2020)

Case CX145D SR is a crawler excavator manufactured since 2017, with a weight of 14.5 tons. It features a track width of 600 mm, a …

Case CX145D SR is a crawler excavator manufactured since 2017, with a weight of 14.5 tons. It features a track width of 600 mm, a transport length of 7.2 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters. The machine has a tear-out force of 56 kN and comes equipped with air conditioning, a blade, an overload alert system, and a hydraulic quick hitch.

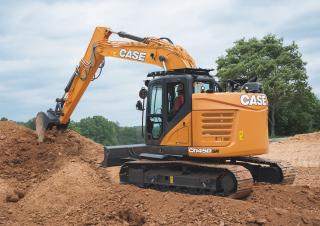

Crawler Excavators Case CX145D SR
Crawler Excavators Case CX145D SR
Crawler Excavators Case CX145D SR
Crawler Excavators Case CX145D SR
Crawler Excavators Case CX145D SR
Crawler Excavators Case CX145D SR

Technical specs - CX145D SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.5 t
Transport length
7.2 m
Transport width
2.5 m
Transport height
2.9 m
Bucket capacity
0.76 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.77 m
Dredging depth
6.05 m
Tear-out force
56 kN
Bucket width
1.1 m
Model series
D
Engine manuf.
Isuzu
Engine type
k.A.
Engine power
74.9 kW
Displacement
3 l
Revolutions at max torque
2000 rpm
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX145D SR FAQ

When was the Case CX145D SR manufactured?

The Case CX145D SR was manufactured from 2017 to 2020.

How much does the Case CX145D SR weigh?

The Case CX145D SR weighs 14.5 tons.

What are the transport dimensions of the Case CX145D SR crawler excavator?

The Case CX145D SR has a transport length of 7.2 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters.

What are the undercarriage specifications of the Case CX145D SR?

The Case CX145D SR has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX145D SR?

The Case CX145D SR has a dredging depth of 6.05 meters, a maximum horizontal reach of 8.77 meters, and features a monobloc boom.

What is the tear-out force of the Case CX145D SR?

The Case CX145D SR has a tear-out force of 56 kN.

What are the specifications of the primary work tool bucket on the Case CX145D SR?

The primary work tool bucket on the Case CX145D SR has a capacity of 0.76 cubic meters and a width of 1.1 meters.

How much is a Case CX145D SR Crawler excavator (2017u20132020) worth?

The residual value of the Case CX145D SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
