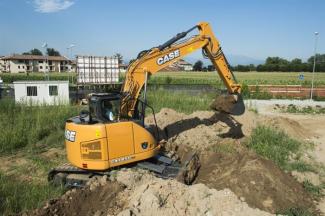

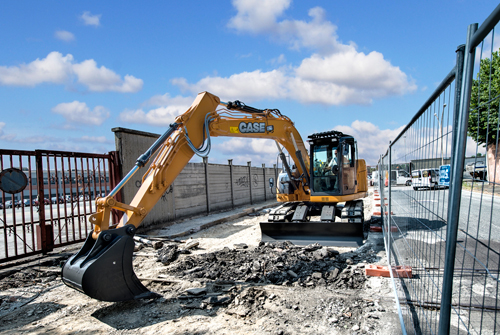

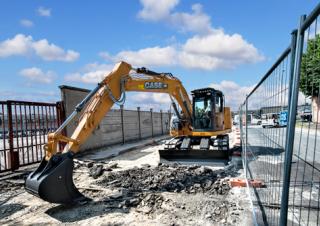

CX145C Case excavator specs & Dimensions (2012 - 2017)

Case CX145C is a crawler excavator manufactured from 2012 to 2017, with a weight of 14.5 tons. It features a track width of 600 mm…

Case CX145C is a crawler excavator manufactured from 2012 to 2017, with a weight of 14.5 tons. It features a track width of 600 mm, a transport length of 7.2 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters. The machine has a tear-out force of 56 kN and comes equipped with air conditioning, an overload alert, and a hydraulic quick hitch.

CX145C

Years of manufacture: 2012—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CX145C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 14.5 t

Transport length: 7.2 m

Transport width: 2.5 m

Transport height: 2.9 m

Bucket capacity: 0.76 m³

Undercarriage: SL

Track width: 600 mm

Boom: MB

Max. Reach horizontal: 8.77 m

Dredging depth: 6.05 m

Tear-out force: 56 kN

Bucket width: 1.1 m

Model series: C

Engine manuf.: Isuzu

Engine type: AI 4 JJ 1 X

Engine power: 74.9 kW

Displacement: 3 l

Revolutions at max torque: 2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Track adjustment: No
Blade: No
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Aircondition: Yes
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Case CX145C FAQ

When was the Case CX145C manufactured?

The Case CX145C was manufactured from 2012 to 2017.

How much does the Case CX145C weigh?

The Case CX145C weighs 14.5 tons.

What are the transport dimensions of the Case CX145C crawler excavator?

The Case CX145C crawler excavator has a transport length of 7.2 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters.

What are the undercarriage specifications of the Case CX145C?

The Case CX145C has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX145C crawler excavator?

The Case CX145C crawler excavator has a dredging depth of 6.05 meters, a maximum horizontal reach of 8.77 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX145C, and are there any power ratings available?

The Case CX145C has a tear-out force of 56 kN. No power ratings are provided in the available data.

What are the bucket specifications of the Case CX145C excavator?

The Case CX145C excavator has a bucket capacity of 0.76 cubic meters and a bucket width of 1.1 meters.
