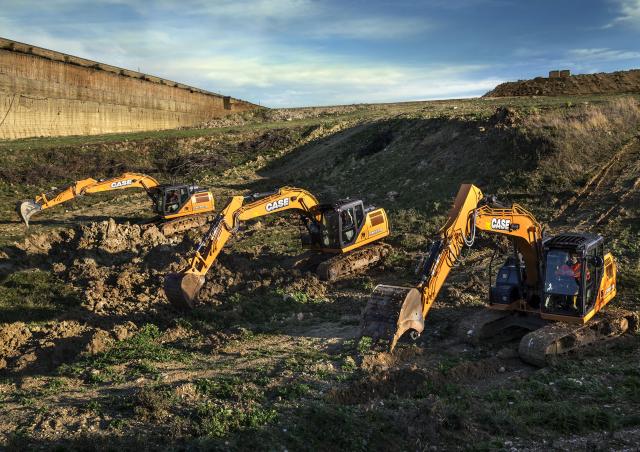

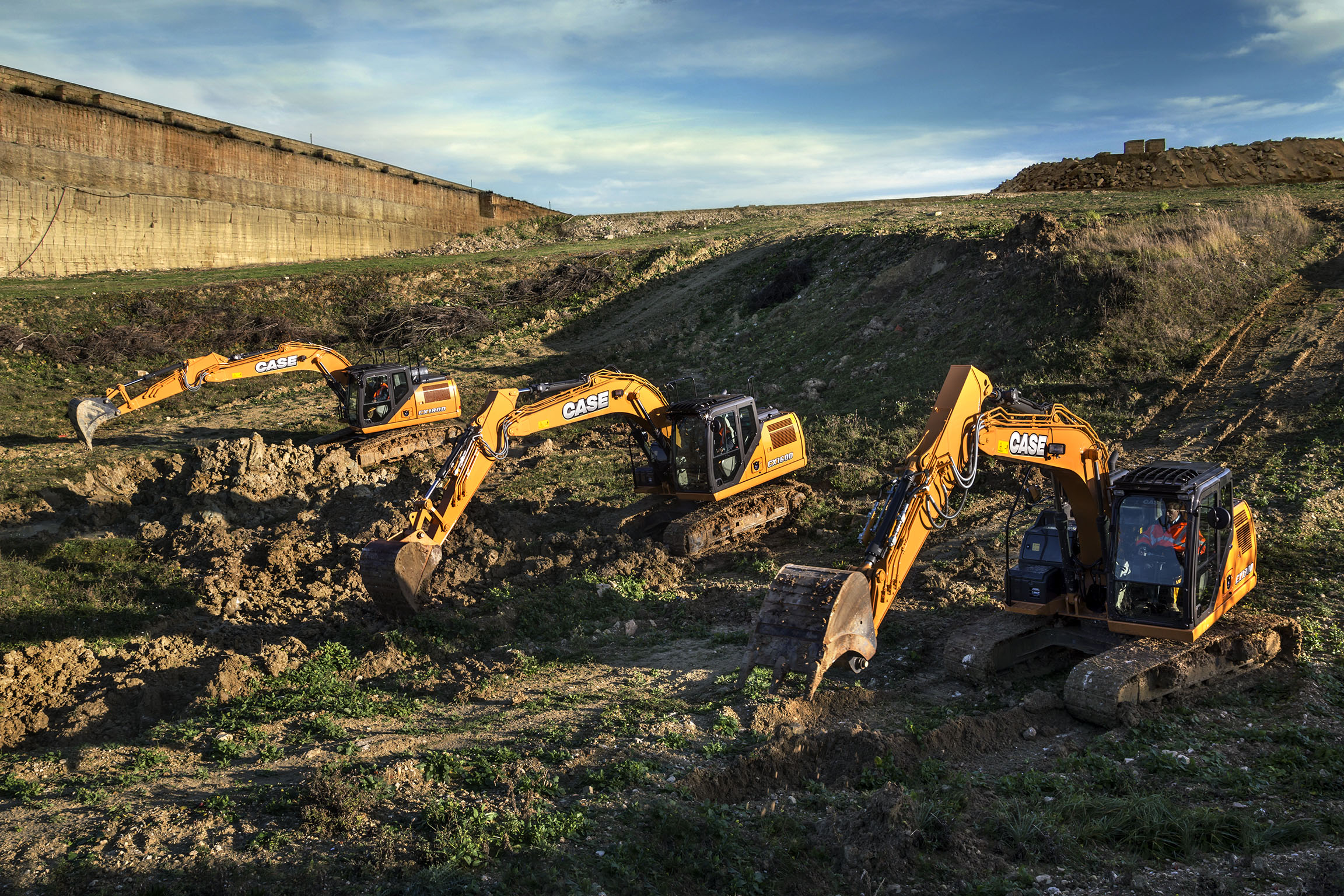

CX130E Case excavator specs & Dimensions (2022 - 2026)

Case CX130E is a Crawler Excavator manufactured since 2022, with a weight of 13.3 tons. It features a track width of 600 mm, a tra…

Case CX130E is a Crawler Excavator manufactured since 2022, with a weight of 13.3 tons. It features a track width of 600 mm, a transport length of 7.66 meters, a transport width of 2.59 meters, and a transport height of 2.91 meters. The machine has a tear-out force of 90 kN, a dredging depth of 5.55 meters, and a maximum horizontal reach of 8.17 meters. The bucket width is 0.9 meters with a capacity of 0.5 cubic meters. Special equipment includes air conditioning, a diesel particulate filter, an overload alert, and a hydraulic quick hitch.

Crawler Excavators Case CX130E

Technical specs - CX130E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.3 t
Transport length
7.66 m
Transport width
2.59 m
Transport height
2.91 m
Bucket capacity
0.5 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.17 m
Dredging depth
5.55 m
Tear-out force
90 kN
Bucket width
0.9 m
Model series
E
Engine manuf.
FPT
Engine type
NEF4
Engine power
76.4 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
Max. torque
370 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
EU V

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Case CX130E FAQ

When was the Case CX130E manufactured?

The Case CX130E was first produced in 2022.

How much does the Case CX130E weigh?

The Case CX130E weighs 13.3 tons.

What are the transport dimensions of the Case CX130E crawler excavator?

The Case CX130E crawler excavator has a transport length of 7.66 meters, a transport width of 2.59 meters, and a transport height of 2.91 meters.

What are the undercarriage specifications of the Case CX130E?

The Case CX130E has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX130E?

The Case CX130E has a dredging depth of 5.55 meters, a maximum horizontal reach of 8.17 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX130E?

The Case CX130E has a tear-out force of 90 kN.

What are the specifications of the primary work tool bucket on the Case CX130E?

The primary work tool bucket of the Case CX130E has a capacity of 0.5 cubic meters and a width of 0.9 meters.

How much is a Case CX130E Crawler excavator (2022u20132025) worth?

The residual value of the Case CX130E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
