CX 75 SR Case excavator specs & Dimensions (2003 - 2005)

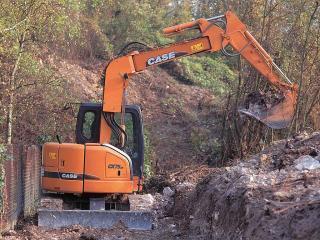

Case CX 75 SR is a crawler excavator manufactured from 2003 to 2005, with a weight of 7.66 tons. It features a track width of 450 …

Case CX 75 SR is a crawler excavator manufactured from 2003 to 2005, with a weight of 7.66 tons. It features a track width of 450 mm, a transport length of 2.97 meters, and a transport width of 4 meters. The excavator is equipped with an overload alert system.

Crawler Excavators Case CX 75 SR

Technical specs - CX 75 SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.66 t
Transport length
2.97 m
Transport width
4 m
Bucket capacity
0.24 m³
Undercarriage
SL
Track width
450 mm
Boom
MB
Max. Reach horizontal
6.5 m
Dredging depth
4.15 m
Tear-out force
38.3 kN
Bucket width
0.6 m
Model series
SR
Engine manuf.
Isuzu
Engine type
CC-4JG1
Engine power
39.1 kW
Displacement
3.059 l
Revolutions at max torque
2100 rpm

More technical details, like: transport height, bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 75 SR FAQ

When was the Case CX 75 SR manufactured?

The Case CX 75 SR was manufactured from 2003 to 2005.

How much does the Case CX 75 SR weigh?

The Case CX 75 SR weighs 7.66 tons.

What are the transport dimensions of the Case CX 75 SR?

The Case CX 75 SR has a transport length of 2.97 meters and a transport width of 4 meters.

What are the undercarriage specifications of the Case CX 75 SR?

The Case CX 75 SR has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Case CX 75 SR crawler excavator?

The Case CX 75 SR crawler excavator has a dredging depth of 4.15 meters, a maximum horizontal reach of 6.5 meters, and features a monobloc boom.

What is the tear-out force of the Case CX 75 SR?

The Case CX 75 SR has a tear-out force of 38.3 kN.

What are the bucket specifications of the Case CX 75 SR excavator?

The Case CX 75 SR excavator has a bucket capacity of 0.24 cubic meters and a bucket width of 0.6 meters.

How much is a Case CX 75 SR Crawler excavator (2003u20132005) worth?

The residual value of the Case CX 75 SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
