CX 370 C LC Mono Case excavator specs & Dimensions (2011 - 2014)

Case CX 370 C LC Mono is a crawler excavator manufactured from 2011 to 2014, with a weight of 36.7 t. It features a track width of…

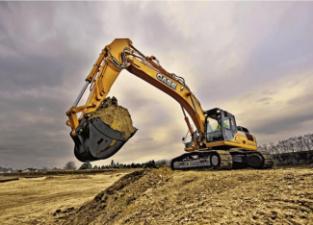

Case CX 370 C LC Mono is a crawler excavator manufactured from 2011 to 2014, with a weight of 36.7 t. It features a track width of 600 mm, a transport length of 11.14 m, a transport width of 3.2 m, and a transport height of 3.2 m. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono
Crawler Excavators Case CX 370 C LC Mono

Technical specs - CX 370 C LC Mono Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36.7 t
Transport length
11.14 m
Transport width
3.2 m
Transport height
3.2 m
Bucket capacity
1.8 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.67 m
Dredging depth
3.73 m
Tear-out force
228.8 kN
Bucket width
1.7 m
Model series
C
Engine manuf.
Isuzu
Engine type
AL 6 HK 1 X
Engine power
198 kW
Displacement
7.8 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 370 C LC Mono FAQ

When was the Case CX 370 C LC Mono manufactured?

The Case CX 370 C LC Mono was manufactured from 2011 to 2014.

How much does the Case CX 370 C LC Mono weigh?

The Case CX 370 C LC Mono weighs 36.7 tons.

What are the transport dimensions of the Case CX 370 C LC Mono crawler excavator?

The Case CX 370 C LC Mono has transport dimensions of 11.14 meters in length, 3.2 meters in width, and 3.2 meters in height.

What are the undercarriage specifications of the Case CX 370 C LC Mono?

The Case CX 370 C LC Mono has a long undercarriage and a track width of 600 mm.

What are the excavation performance specifications of the Case CX 370 C LC Mono?

The Case CX 370 C LC Mono has a dredging depth of 3.73 meters, a maximum horizontal reach of 10.67 meters, and is equipped with a monobloc boom.

What is the power rating of the Case CX 370 C LC Mono?

The provided data does not include power rating information for the Case CX 370 C LC Mono.

What are the bucket specifications of the Case CX 370 C LC Mono excavator?

The Case CX 370 C LC Mono has a bucket capacity of 1.8 cubic meters and a bucket width of 1.7 meters.

How much is a Case CX 370 C LC Mono Crawler excavator (2011u20132014) worth?

The residual value of the Case CX 370 C LC Mono depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX 370 C LC Mono overview

Engine

Clean power

Case C Series excavators use clean and efficient Tier 4 interim diesel engines. Equipped with Cooled Exhaust Gas Recirculation (CEGR) and a diesel particulate filter, the engine is capable of meeting emissions regulations without the need for additional diesel exhaust fluids. Automatic self-regeneration of the Diesel Particulate Diffusor (DPD) ensures no loss of productivity, while low engine rpm, improved hydraulic pump control and five new energy saving systems boost fuel economy by up to 10%. A green economy gauge can be activated in the cab to inform the operator of the most economical settings for the machine, reporting fuel consumption in real-time.


Advanced energy management

Through the use of 5 new fuel saving functions, C series excavators speed up productivity and substantially improve fuel economy. The new systems include: Boom Economy Control (BEC) - Increased fuel efficiency during boom lower and swing operations. Automatic Economy Control (AEC) - Improved fuel efficiency when servo joysticks are in neutral position and the operator is not calling for power from the machine. Swing Relief Control (SWC) - Carefully manages the hydraulic power distribution at slewing operations, to provide the most efficient flow and pressure. Spool Stroke Control (SSC) - Creates an automatic pressure adjustment during digging and leveling operations. It saves fuel, while improving controllability for the operator in fine digging operations.


Idle functions

All C-series excavators also feature Auto Idle and Idle Shut Down systems. When activated, Auto Idle automatically lowers engine revs, whatever the throttle position, when the levers have been inactive for 5 seconds. Manually, Idle can be activated by a switch on the joystick. Idle shut down, when activated, shuts down the engine when there has been no activity for 3 minutes, resulting in additional fuel savings.


Cab

First class operator environment

The C Series cab is 7% larger than the previous models and uses a smaller top beam and no overlap in the front windows to offer improved all round visibility. Noise levels are reduced to almost automotive standards, around 70dB(A), while the operator has a suspension seat and fully adjustable levers as standard. Travel pedals require less effort, reducing fatigue for the operator. The ROPS cab sits on new suspension mounts to reduce vibration for the operator and contribute to the lower internal noise levels. The cab has a powerful air conditioning system with 25% more airflow and an 8% increase in performance. New mirrors and a standard rear view camera, with optional side camera, feed directly into the improved 178 mm LED monitor inside the cab, providing the operator with a safe and secure working environment.


Equipment

Optional Equipment

Hydraulics Auxiliary Hydraulics - Single acting pedal activated breaker circuit Pedal activated multifunction circuit Pedal activated multifunction circuit with pressure control Pedal activated low-flow circuit Switch controlled auxiliary selection Attachments Arm - 2.65/3.66 m Hydr. or mech quickcoupler Buckets: Extreme / Heavy duty / GP / ditching Hammers, shears, grapples Operator Station Front cab guard - vertical bars (OPG level 2) Front cab guard - vertical bars (OPG level 1) Front mesh screen AM/FM/CD radio with antenna and 2-speakers Side-view camera Upperstructure Auto centralized greasing system Rubber bumper guard (order through Service Parts) Undercarriage Steel shoes, triple semi-grouser 700mm, 800mm (LC only) Multiple track guides
