CX 290 NLC Case excavator specs & Dimensions (2002 - 2006)

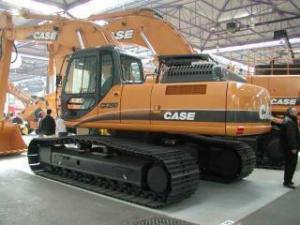

Case CX 290 NLC is a crawler excavator manufactured from 2002 to 2006. It has a weight of 28.5 tons and a track width of 600 mm. T…

Case CX 290 NLC is a crawler excavator manufactured from 2002 to 2006. It has a weight of 28.5 tons and a track width of 600 mm. The transport dimensions are 10.41 meters in length, 3.2 meters in width, and 3.27 meters in height. The tear-out force is 125 kN. Special equipment includes air conditioning and an overload alert system.

Crawler Excavators Case CX 290 NLC

Technical specs - CX 290 NLC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.5 t
Transport length
10.41 m
Transport width
3.2 m
Transport height
3.27 m
Bucket capacity
1.4 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.3 m
Dredging depth
6.6 m
Tear-out force
125 kN
Bucket width
1.4 m
Engine manuf.
Isuzu
Engine type
CC-6BG1T
Engine power
141 kW
Displacement
6.494 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Case CX 290 NLC FAQ

When was the Case CX 290 NLC manufactured?

The Case CX 290 NLC was manufactured from 2002 to 2006.

How much does the Case CX 290 NLC weigh?

The Case CX 290 NLC weighs 28.5 tons.

What are the transport dimensions of the Case CX 290 NLC crawler excavator?

The Case CX 290 NLC has a transport length of 10.41 meters, a transport width of 3.2 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the Case CX 290 NLC?

The Case CX 290 NLC has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 290 NLC?

The Case CX 290 NLC has a dredging depth of 6.6 meters, a maximum horizontal reach of 10.3 meters, and is equipped with a monobloc boom.

What are the power ratings of the Case CX 290 NLC?

The source data does not provide power rating information for the Case CX 290 NLC.

What are the bucket specifications of the Case CX 290 NLC excavator?

The Case CX 290 NLC excavator has a bucket capacity of 1.4 cubic meters and a bucket width of 1.4 meters.

How much is a Case CX 290 NLC Crawler excavator (2002u20132006) worth?

The residual value of the Case CX 290 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
