CX 290 B NLC Case excavator specs & Dimensions (2004 - 2015)

Case CX 290 B NLC is a crawler excavator manufactured from 2004 to 2015. It has a weight of 29.4 tons and a track width of 700 mm.…

Case CX 290 B NLC is a crawler excavator manufactured from 2004 to 2015. It has a weight of 29.4 tons and a track width of 700 mm. The transport dimensions are 10.48 meters in length, 2.99 meters in width, and 3.46 meters in height. The machine features a tear-out force of 175 kN, a dredging depth of 7.58 meters, and a maximum horizontal reach of 10.99 meters. The bucket width is 1.6 meters, with a capacity ranging from 0.48 m³ to 1.7 m³.

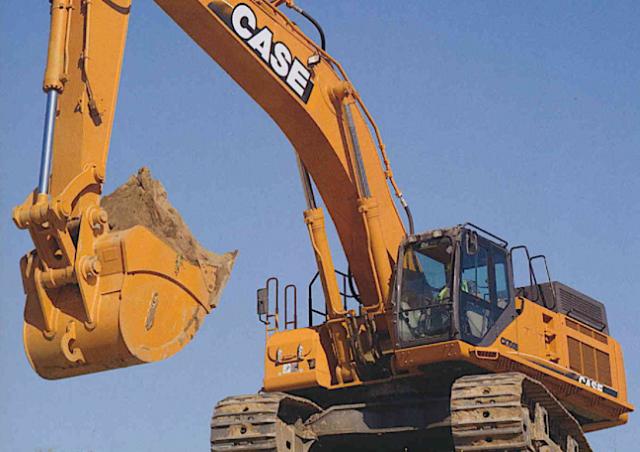

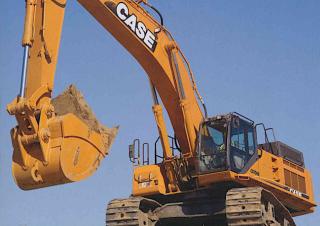

Crawler Excavators Case CX 290 B NLC

Technical specs - CX 290 B NLC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.4 t
Transport length
10.48 m
Transport width
2.99 m
Transport height
3.46 m
Bucket capacity
1.7 m³
Bucket capacity min.
0.48 m³
Bucket capacity max.
1.7 m³
Undercarriage
NLC
Track width
700 mm
Boom
MB
Max. Reach horizontal
10.99 m
Dredging depth
7.58 m
Tear-out force
175 kN
Bucket width
1.6 m
Model series
B
Engine manuf.
Isuzu
Engine type
AH-6HK1X
Engine power
164 kW
Displacement
7.79 l
No. of cylinders
6
Cylinder bore x stroke
115 x 125 mm
Emission level
IIIA

More technical details, like: dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 290 B NLC FAQ

When was the Case CX 290 B NLC manufactured?

The Case CX 290 B NLC was manufactured from 2004 to 2015.

How much does the Case CX 290 B NLC weigh?

The Case CX 290 B NLC weighs 29.4 tons.

What are the transport dimensions of the Case CX 290 B NLC crawler excavator?

The Case CX 290 B NLC has a transport length of 10.48 meters, a transport width of 2.99 meters, and a transport height of 3.46 meters.

What are the undercarriage specifications of the Case CX 290 B NLC?

The Case CX 290 B NLC has a small undercarriage with a track width of 700 mm.

What are the excavation performance specifications of the Case CX 290 B NLC?

The Case CX 290 B NLC has a dredging depth of 7.58 meters, a maximum horizontal reach of 10.99 meters, and is equipped with a monobloc boom.

What are the power ratings of the Case CX 290 B NLC crawler excavator?

The source data does not provide any power rating information for the Case CX 290 B NLC crawler excavator.

What are the specifications of the bucket on the Case CX 290 B NLC crawler excavator?

The Case CX 290 B NLC crawler excavator has a bucket capacity ranging from 0.48 to 1.7 cubic meters, with a maximum capacity of 1.7 cubic meters and a bucket width of 1.6 meters.

How much is a Case CX 290 B NLC Crawler excavator (2004u20132015) worth?

The residual value of the Case CX 290 B NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
