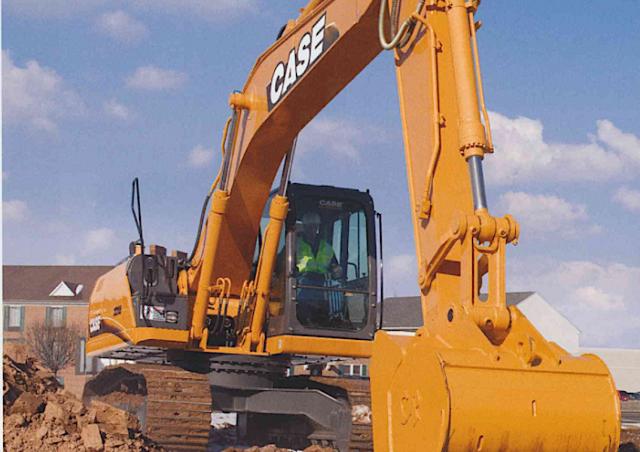

CX 290 B Case excavator specs & Dimensions (2007 - 2015)

Case CX 290 B is a crawler excavator manufactured from 2007 to 2015. It has a weight of 29.8 tons and a track width of 800 mm. The…

Case CX 290 B is a crawler excavator manufactured from 2007 to 2015. It has a weight of 29.8 tons and a track width of 800 mm. The transport dimensions are 10.48 meters in length, 3.4 meters in width, and 3.46 meters in height. The excavator features a tear-out force of 175 kN, a dredging depth of 7.58 meters, and a maximum horizontal reach of 10.99 meters. The bucket width is 1.67 meters, with a capacity ranging from 0.53 m³ to 1.64 m³.

Crawler Excavators Case CX 290 B

Technical specs - CX 290 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.8 t
Transport length
10.48 m
Transport width
3.4 m
Transport height
3.46 m
Bucket capacity
1.64 m³
Bucket capacity min.
0.53 m³
Bucket capacity max.
1.64 m³
Track width
800 mm
Max. Reach horizontal
10.99 m
Dredging depth
7.58 m
Tear-out force
175 kN
Bucket width
1.67 m
Model series
B
Engine manuf.
Isuzu
Engine type
6HK1YSS
Engine power
154 kW
Displacement
7.8 l
Revolutions at max torque
1500 rpm
Max. torque
850 Nm
No. of cylinders
6
Cylinder bore x stroke
115x126 mm
Emission level
Tier III

More technical details, like: undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 290 B FAQ

When was the Case CX 290 B manufactured?

The Case CX 290 B was manufactured from 2007 to 2015.

How much does the Case CX 290 B weigh?

The Case CX 290 B weighs 29.8 tons.

What are the transport dimensions of the Case CX 290 B crawler excavator?

The Case CX 290 B has a transport length of 10.48 meters, a transport width of 3.4 meters, and a transport height of 3.46 meters.

What is the track width of the Case CX 290 B's undercarriage?

The Case CX 290 B has a track width of 800 mm.

What are the excavation performance specifications of the Case CX 290 B?

The Case CX 290 B has a dredging depth of 7.58 meters and a maximum horizontal reach of 10.99 meters.

What is the tear-out force of the Case CX 290 B, given that no power ratings are provided?

The Case CX 290 B has a tear-out force of 175 kN. No power ratings are provided in the available data.

What are the bucket specifications of the Case CX 290 B crawler excavator?

The Case CX 290 B has a bucket capacity ranging from 0.53 to 1.64 cubic meters, with a bucket width of 1.67 meters.

How much is a Case CX 290 B Crawler excavator (2007u20132015) worth?

The residual value of the Case CX 290 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
