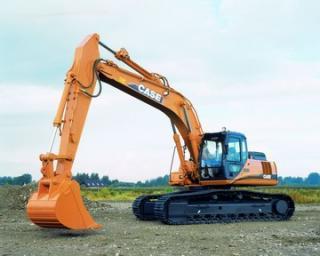

CX 290 Case excavator specs & Dimensions (2003 - 2008)

Case CX 290 is a crawler excavator manufactured from 2003 to 2008, with a weight of 28.5 tons. It features a track width of 600 mm…

Case CX 290 is a crawler excavator manufactured from 2003 to 2008, with a weight of 28.5 tons. It features a track width of 600 mm, a transport length of 10.41 meters, a transport width of 3.2 meters, and a transport height of 3.27 meters. The machine has a tear-out force of 125 kN and comes equipped with air conditioning and an overload alert system.

Crawler Excavators Case CX 290

Technical specs - CX 290 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
28.5 t
Transport length
10.41 m
Transport width
3.2 m
Transport height
3.27 m
Bucket capacity
1.55 m³
Undercarriage
NLC
Track width
600 mm
Boom
MB
Max. Reach horizontal
10.1 m
Dredging depth
7.15 m
Tear-out force
125 kN
Bucket width
1.5 m
Engine manuf.
Isuzu
Engine type
CC-6BG1T
Engine power
141 kW
Displacement
6.494 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 290 FAQ

When was the Case CX 290 manufactured?

The Case CX 290 was manufactured from 2003 to 2008.

How much does the Case CX 290 weigh?

The Case CX 290 weighs 28.5 tons.

What are the transport dimensions of the Case CX 290 crawler excavator?

The Case CX 290 has a transport length of 10.41 meters, a transport width of 3.2 meters, and a transport height of 3.27 meters.

What are the undercarriage specifications of the Case CX 290?

The Case CX 290 has a small undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 290?

The Case CX 290 has a dredging depth of 7.15 meters, a maximum horizontal reach of 10.1 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX 290?

The Case CX 290 has a tear-out force of 125 kN.

What are the specifications of the primary work tool (bucket) on the Case CX 290?

The primary work tool of the Case CX 290 has a bucket capacity of 1.55 cubic meters and a bucket width of 1.5 meters.
