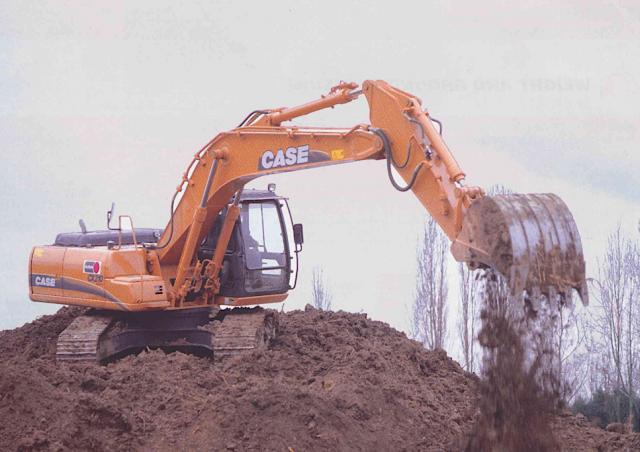

CX 210 NLC Case excavator specs & Dimensions (2003 - 2015)

Case CX 210 NLC is a Crawler Excavator manufactured from 2003 to 2015. It has a weight of 19.9 tons and a track width of 500 mm. T…

Case CX 210 NLC is a Crawler Excavator manufactured from 2003 to 2015. It has a weight of 19.9 tons and a track width of 500 mm. The transport dimensions are 9.6 meters in length, 2.5 meters in width, and 3.09 meters in height. The excavator features a tear-out force of 126 kN, a dredging depth of 6.7 meters, and a maximum horizontal reach of 9.8 meters. The bucket width is 1.45 meters, with a capacity ranging from 0.41 m³ to 1.25 m³.

Crawler Excavators Case CX 210 NLC

Technical specs - CX 210 NLC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Transport length
9.6 m
Transport width
2.5 m
Transport height
3.09 m
Bucket capacity
1.25 m³
Bucket capacity min.
0.41 m³
Bucket capacity max.
1.25 m³
Undercarriage
NLC
Track width
500 mm
Boom
MB
Max. Reach horizontal
9.8 m
Dredging depth
6.7 m
Tear-out force
126 kN
Bucket width
1.45 m
Engine manuf.
Isuzu
Engine type
BB-6BG1T
Engine power
105 kW
Displacement
6.494 l
Revolutions at max torque
1950 rpm

More technical details, like: model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 210 NLC FAQ

When was the Case CX 210 NLC manufactured?

The Case CX 210 NLC was manufactured from 2003 to 2015.

How much does the Case CX 210 NLC weigh?

The Case CX 210 NLC weighs 19.9 tons.

What are the transport dimensions of the Case CX 210 NLC?

The Case CX 210 NLC has a transport length of 9.6 meters, a transport width of 2.5 meters, and a transport height of 3.09 meters.

What are the undercarriage specifications of the Case CX 210 NLC?

The Case CX 210 NLC has a small undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Case CX 210 NLC?

The Case CX 210 NLC has a dredging depth of 6.7 meters, a maximum horizontal reach of 9.8 meters, and features a Monobloc boom.

What is the power rating of the Case CX 210 NLC?

The source data does not provide power rating information for the Case CX 210 NLC.

What are the bucket specifications of the Case CX 210 NLC crawler excavator?

The Case CX 210 NLC crawler excavator has a bucket capacity ranging from 0.41 to 1.25 cubic meters and a bucket width of 1.45 meters.

How much is a Case CX 210 NLC Crawler excavator (2003u20132015) worth?

The residual value of the Case CX 210 NLC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
