CX 210 LC Case excavator specs & Dimensions (2001 - 2008)

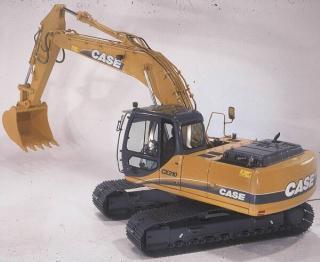

Case CX 210 LC is a Crawler Excavator manufactured from 2001 to 2008, with a weight of 20 tons. It features a track width of 600 m…

Case CX 210 LC is a Crawler Excavator manufactured from 2001 to 2008, with a weight of 20 tons. It features a track width of 600 mm, a transport length of 9.58 meters, a transport width of 2.99 meters, and a transport height of 3.09 meters. The excavator is equipped with air conditioning and an overload alert system.

Crawler Excavators Case CX 210 LC

Technical specs - CX 210 LC Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
9.58 m
Transport width
2.99 m
Transport height
3.09 m
Bucket capacity
1.05 m³
Undercarriage
LC
Track width
600 mm
Boom
MB
Max. Reach horizontal
9.4 m
Dredging depth
6.1 m
Tear-out force
125.6 kN
Bucket width
1.25 m
Engine manuf.
Isuzu
Engine type
BB-6BG1T
Engine power
105 kW
Displacement
6.494 l
Revolutions at max torque
1950 rpm

More technical details, like: bucket capacity min., bucket capacity max., model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 210 LC FAQ

When was the Case CX 210 LC manufactured?

The Case CX 210 LC was manufactured from 2001 to 2008.

How much does the Case CX 210 LC weigh?

The Case CX 210 LC weighs 20 tons.

What are the transport dimensions of the Case CX 210 LC crawler excavator?

The Case CX 210 LC has a transport length of 9.58 meters, a transport width of 2.99 meters, and a transport height of 3.09 meters.

What are the undercarriage specifications of the Case CX 210 LC?

The Case CX 210 LC has a long undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 210 LC?

The Case CX 210 LC has a dredging depth of 6.1 meters, a maximum horizontal reach of 9.4 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX 210 LC?

The Case CX 210 LC has a tear-out force of 125.6 kN.

What are the bucket specifications of the Case CX 210 LC crawler excavator?

The Case CX 210 LC crawler excavator has a bucket capacity of 1.05 cubic meters and a bucket width of 1.25 meters.

How much is a Case CX 210 LC Crawler excavator (2001u20132008) worth?

The residual value of the Case CX 210 LC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
