CX 135 SR Case excavator specs & Dimensions (2008 - 2012)

Model rating
10,00 / 10

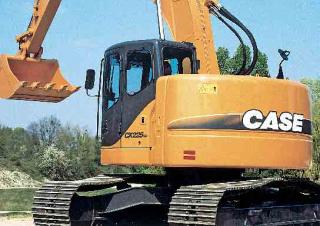

Case CX 135 SR is a crawler excavator manufactured from 2008 to 2012, with a weight of 13.6 tons. It features a track width of 600…

Case CX 135 SR is a crawler excavator manufactured from 2008 to 2012, with a weight of 13.6 tons. It features a track width of 600 mm, a transport length of 7.24 meters, a transport width of 2.75 meters, and a transport height of 2.59 meters. This model is equipped with a blade.

Crawler Excavators Case CX 135 SR

Technical specs - CX 135 SR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.6 t
Transport length
7.24 m
Transport width
2.75 m
Transport height
2.59 m
Bucket capacity
0.36 m³
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.205 m
Dredging depth
5.47 m
Tear-out force
89.7 kN
Bucket width
1.2 m
Model series
SR
Engine manuf.
Isuzu
Engine type
AI 4 JJ 1 X
Engine power
70.9 kW
Revolutions at max torque
1600 rpm

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 135 SR FAQ

When was the Case CX 135 SR manufactured?

The Case CX 135 SR was manufactured from 2008 to 2012.

How much does the Case CX 135 SR weigh?

The Case CX 135 SR weighs 13.6 tons.

What are the transport dimensions of the Case CX 135 SR crawler excavator?

The Case CX 135 SR has a transport length of 7.24 meters, a transport width of 2.75 meters, and a transport height of 2.59 meters.

What is the track width of the Case CX 135 SR's undercarriage?

The Case CX 135 SR has a track width of 600 mm.

What are the excavation performance specifications of the Case CX 135 SR?

The Case CX 135 SR has a dredging depth of 5.47 meters, a maximum horizontal reach of 8.205 meters, and features a Monobloc boom.

What are the power ratings of the Case CX 135 SR?

The source data does not provide power rating information for the Case CX 135 SR.

What are the bucket specifications of the Case CX 135 SR excavator?

The Case CX 135 SR excavator has a bucket capacity of 0.36 cubic meters and a bucket width of 1.2 meters.
