CX 135 MSR Case excavator specs & Dimensions (2007 - 2015)

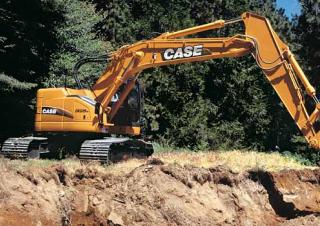

Case CX 135 MSR is a crawler excavator manufactured from 2007 to 2015. It has a weight of 13.44 tons and a track width of 600 mm. …

Case CX 135 MSR is a crawler excavator manufactured from 2007 to 2015. It has a weight of 13.44 tons and a track width of 600 mm. The transport dimensions are 7.23 meters in length, 2.59 meters in width, and 2.75 meters in height. The excavator features a tear-out force of 90 kN, a dredging depth of 5.91 meters, and a maximum horizontal reach of 8.43 meters. The bucket width is 1.68 meters, with a capacity ranging from 0.38 m³ to 0.75 m³. It is equipped with a blade as special equipment.

Crawler Excavators Case CX 135 MSR

Technical specs - CX 135 MSR Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.44 t
Transport length
7.23 m
Transport width
2.59 m
Transport height
2.75 m
Bucket capacity
0.75 m³
Bucket capacity min.
0.38 m³
Bucket capacity max.
0.75 m³
Track width
600 mm
Max. Reach horizontal
8.43 m
Dredging depth
5.91 m
Tear-out force
90 kN
Bucket width
1.68 m
Model series
MSR
Engine manuf.
Isuzu
Engine type
AJ-4JJ1X
Engine power
71 kW
Displacement
3 l
Revolutions at max torque
1600 rpm
Max. torque
359 Nm
No. of cylinders
4
Cylinder bore x stroke
95.4x104.9 mm
Emission level
Tier III

More technical details, like: undercarriage, boom, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 135 MSR FAQ

When was the Case CX 135 MSR manufactured?

The Case CX 135 MSR was manufactured from 2007 to 2015.

How much does the Case CX 135 MSR weigh?

The Case CX 135 MSR weighs 13.44 tons.

What are the transport dimensions of the Case CX 135 MSR crawler excavator?

The Case CX 135 MSR has a transport length of 7.23 meters, a transport width of 2.59 meters, and a transport height of 2.75 meters.

What is the track width of the Case CX 135 MSR's undercarriage?

The Case CX 135 MSR has a track width of 600 mm.

What are the excavation performance specifications of the Case CX 135 MSR?

The Case CX 135 MSR has a dredging depth of 5.91 meters and a maximum horizontal reach of 8.43 meters.

What is the tear-out force of the Case CX 135 MSR?

The Case CX 135 MSR has a tear-out force of 90 kN.

What are the specifications of the primary work tool bucket on the Case CX 135 MSR?

The Case CX 135 MSR has a bucket with a capacity ranging from 0.38 to 0.75 cubic meters and a width of 1.68 meters.

How much is a Case CX 135 MSR Crawler excavator (2007u20132015) worth?

The residual value of the Case CX 135 MSR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX 135 MSR overview

Equipment

CX Excavators Features

Like all CX excavators, two-pump flow on boom/arm circuits assist boom lowering and arm closing speed to trim work cycles. Features like free swing control help keep loads moving quickly and efficiently. The standard Power Boost and Auto Work Mode on the CX130 and CX160 optimize productivity on any job site. Additionally, like all CX models, these machines offer a choice of three optional auxiliary hydraulics packages to meet your application needs: single-acting one pump, double-acting single or dual pump, and double-acting general purpose for use with the optional thumb kit.
