CX 130 B Case excavator specs & Dimensions (2008 - 2012)

Model rating
8,67 / 10

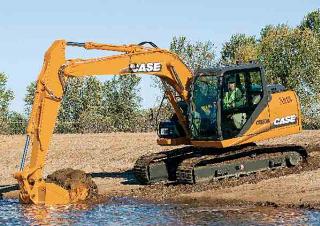

Case CX 130 B is a crawler excavator manufactured from 2008 to 2012. It has a weight of 12.6 tons, a track width of 600 mm, a tran…

Case CX 130 B is a crawler excavator manufactured from 2008 to 2012. It has a weight of 12.6 tons, a track width of 600 mm, a transport length of 7.62 meters, a transport width of 2.59 meters, and a transport height of 2.79 meters. The machine features a tear-out force of 56 kN and is equipped with a blade.

Crawler Excavators Case CX 130 B

Technical specs - CX 130 B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.6 t
Transport length
7.62 m
Transport width
2.59 m
Transport height
2.79 m
Bucket capacity
0.76 m³
Undercarriage
SL
Track width
600 mm
Boom
MB
Max. Reach horizontal
8.77 m
Dredging depth
6.05 m
Tear-out force
56 kN
Bucket width
1.8 m
Model series
B
Engine manuf.
Isuzu
Engine type
AJ 4 JJ 1 X
Engine power
70.9 kW
Displacement
2.999 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 130 B FAQ

When was the Case CX 130 B manufactured?

The Case CX 130 B was manufactured from 2008 to 2012.

How much does the Case CX 130 B weigh?

The Case CX 130 B weighs 12.6 tons.

What are the transport dimensions of the Case CX 130 B crawler excavator?

The Case CX 130 B has a transport length of 7.62 meters, a transport width of 2.59 meters, and a transport height of 2.79 meters.

What are the undercarriage specifications of the Case CX 130 B?

The Case CX 130 B has a standard undercarriage with a track width of 600 mm.

What are the excavation performance specifications of the Case CX 130 B crawler excavator?

The Case CX 130 B has a dredging depth of 6.05 meters, a maximum horizontal reach of 8.77 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case CX 130 B?

The Case CX 130 B has a tear-out force of 56 kN.

What are the bucket specifications of the Case CX 130 B crawler excavator?

The Case CX 130 B crawler excavator has a bucket capacity of 0.76 cubic meters and a bucket width of 1.8 meters.

How much is a Case CX 130 B Crawler excavator (2008u20132012) worth?

The residual value of the Case CX 130 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Reviews

Model rating
8,67 / 10
Quotation mark

Case CX 130 B user from Netherlands

Good working machine!

Quotation mark

Case CX 130 B user from Netherlands

Very good working machine

Quotation mark

Case CX 130 B user from France

Good machine to work with, no matter after 6500h of use.
