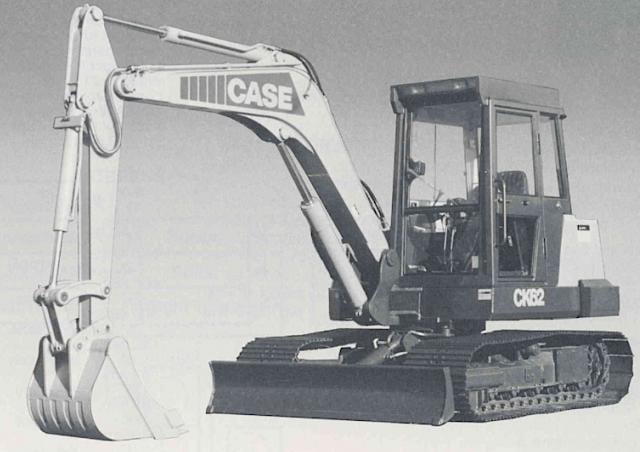

CK62 Case excavator specs & Dimensions (1991 - 2015)

Case CK62 is a Crawler Excavator manufactured from 1991 to 2015. It has a weight of 6.23 tons and a track width of 551 mm. The tra…

Case CK62 is a Crawler Excavator manufactured from 1991 to 2015. It has a weight of 6.23 tons and a track width of 551 mm. The transport dimensions are 5.91 meters in length, 2.15 meters in width, and 2.56 meters in height. The excavator features a tear-out force of 31 kN, a dredging depth of 3.76 meters, and a maximum horizontal reach of 5.88 meters. The bucket width is 1.22 meters, with a capacity ranging from 0.07 m³ to 0.28 m³. It is equipped with a blade as special equipment.

Crawler Excavators Case CK62

Technical specs - CK62 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.23 t
Transport length
5.91 m
Transport width
2.15 m
Transport height
2.56 m
Bucket capacity
0.28 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.28 m³
Track width
551 mm
Max. Reach horizontal
5.88 m
Dredging depth
3.76 m
Tear-out force
31 kN
Bucket width
1.22 m
Engine manuf.
Kubota
Engine type
S2800D
Engine power
44 kW
Displacement
2.79 l
Revolutions at max torque
1400 rpm
Max. torque
159 Nm
No. of cylinders
6
Cylinder bore x stroke
85X82 mm

More technical details, like: undercarriage, boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CK62 FAQ

When was the Case CK62 manufactured?

The Case CK62 was manufactured from 1991 to 2015.

How much does the Case CK62 crawler excavator weigh?

The Case CK62 crawler excavator weighs 6.23 tons.

What are the transport dimensions of the Case CK62 crawler excavator?

The Case CK62 has a transport length of 5.91 meters, a transport width of 2.15 meters, and a transport height of 2.56 meters.

What is the track width of the Case CK62 crawler excavator?

The Case CK62 crawler excavator has a track width of 551 mm.

What are the excavation performance specifications of the Case CK62?

The Case CK62 has a dredging depth of 3.76 meters and a maximum horizontal reach of 5.88 meters.

What is the tear-out force of the Case CK62, the available power-related specification?

The Case CK62 has a tear-out force of 31 kN.

What are the specifications of the primary work tool bucket on the Case CK62?

The Case CK62's primary work tool bucket has a capacity of 0.28 cubic meters, with a maximum capacity of 0.28 cubic meters, a minimum capacity of 0.07 cubic meters, and a width of 1.22 meters.

How much is a Case CK62 Crawler excavator (1991u20132015) worth?

The residual value of the Case CK62 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CK62 overview

Hydraulic and electronic system

Auxiliary Service Ports

Auxiliary service ports to the end of the boom are standard on the CK62. An extra large hydraulic return line routed directly to the tank facilitates the use of hammers and other attachments requiring low back pressure.


Three Pump Hydraulics

With a three pump hydraulic system the operator can control the boom, dipperstick and swing with precision. Hydraulic assist control means ease of operation and maximum productivity.


Undercarriage

Compact Size

The compact size of the CK62 makes it ideal for close quarter operation and easy maneuverability on the job site.


Upper Structure

Super Swing Angle

The boom can swing 50 degrees right and left for digging beside walls, foundations and in tight quarters. The 360 degree upperstructure swing allows the operator to dig and load in tight quarters.
