9060B Case excavator specs & Dimensions (1995 - 2015)

Case 9060B is a Crawler Excavator manufactured from 1995 to 2015. It has a weight of 45.89 tons and a track width of 900 mm. The t…

Case 9060B is a Crawler Excavator manufactured from 1995 to 2015. It has a weight of 45.89 tons and a track width of 900 mm. The transport dimensions are 11.99 meters in length, 3.64 meters in width, and 4.92 meters in height. The machine features a tear-out force of 241 kN, a dredging depth of 9.79 meters, and a maximum horizontal reach of 13.58 meters. The bucket width is 1.83 meters, with a capacity ranging from 1.27 m³ to 3.19 m³.

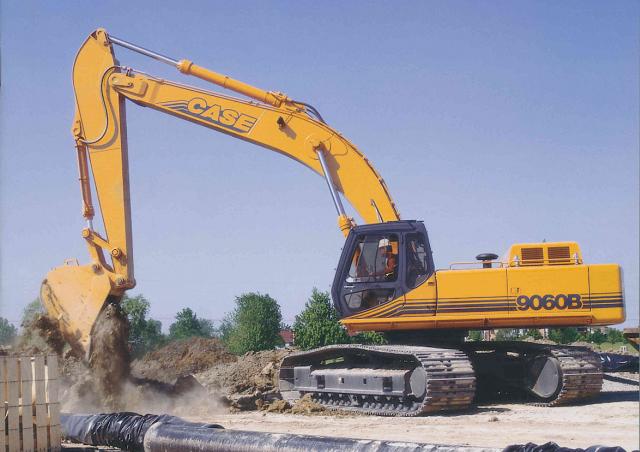

Crawler Excavators Case 9060B

Technical specs - 9060B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
45.89 t
Transport length
11.99 m
Transport width
3.64 m
Transport height
4.92 m
Bucket capacity
3.19 m³
Bucket capacity min.
1.27 m³
Bucket capacity max.
3.19 m³
Undercarriage
HD
Track width
900 mm
Max. Reach horizontal
13.58 m
Dredging depth
9.79 m
Tear-out force
241 kN
Bucket width
1.83 m
Model series
B
Engine manuf.
Mitsubishi
Engine type
6D22-TC
Engine power
215 kW
Displacement
11.15 l
Revolutions at max torque
1400 rpm
Max. torque
1118 Nm
No. of cylinders
6
Cylinder bore x stroke
130x140 mm

More technical details, like: boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 9060B FAQ

When was the Case 9060B manufactured?

The Case 9060B was manufactured from 1995 to 2015.

How much does the Case 9060B weigh?

The Case 9060B weighs 45.89 tons.

What are the transport dimensions of the Case 9060B crawler excavator?

The Case 9060B has a transport length of 11.99 meters, a transport width of 3.64 meters, and a transport height of 4.92 meters.

What are the undercarriage specifications of the Case 9060B?

The Case 9060B has a heavy duty undercarriage with a track width of 900 mm.

What are the dredging depth and maximum horizontal reach of the Case 9060B?

The Case 9060B has a dredging depth of 9.79 meters and a maximum horizontal reach of 13.58 meters.

What is the tear-out force of the Case 9060B crawler excavator?

The Case 9060B crawler excavator has a tear-out force of 241 kN.

What are the specifications of the bucket on the Case 9060B crawler excavator?

The Case 9060B crawler excavator has a bucket with a capacity ranging from 1.27 to 3.19 cubic meters and a width of 1.83 meters.

How much is a Case 9060B Crawler excavator (1995u20132015) worth?

The residual value of the Case 9060B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
