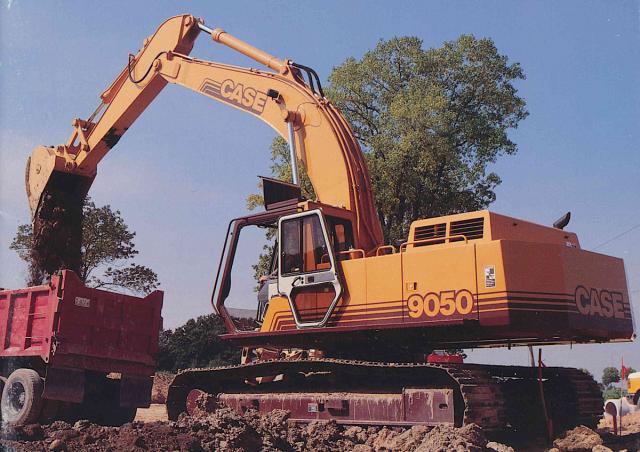

9050 Case excavator specs & Dimensions (1990 - 1993)

Case 9050 is a Crawler Excavator manufactured from 1990 to 1993, with a weight of 30.9 tons. It features a track width of 800 mm, …

Case 9050 is a Crawler Excavator manufactured from 1990 to 1993, with a weight of 30.9 tons. It features a track width of 800 mm, a transport length of 10.87 meters, a transport width of 3.4 meters, and a transport height of 3.81 meters. The excavator has a tear-out force of 173 kN, a dredging depth of 8.2 meters, and a maximum horizontal reach of 11.68 meters. The bucket width is 1.52 meters, with a bucket capacity ranging from 0.92 m³ to 2.09 m³.

Crawler Excavators Case 9050

Technical specs - 9050 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.9 t
Transport length
10.87 m
Transport width
3.4 m
Transport height
3.81 m
Bucket capacity
2.09 m³
Bucket capacity min.
0.92 m³
Bucket capacity max.
2.09 m³
Undercarriage
HD
Track width
800 mm
Max. Reach horizontal
11.68 m
Dredging depth
8.2 m
Tear-out force
173 kN
Bucket width
1.52 m
Engine manuf.
Mitsubishi
Engine type
MT-6D22TC
Engine power
162 kW
Displacement
11.15 l
Revolutions at max torque
1400 rpm
Max. torque
1010 Nm
No. of cylinders
6
Cylinder bore x stroke
130x140 mm

More technical details, like: boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 9050 FAQ

When was the Case 9050 manufactured?

The Case 9050 was manufactured from 1990 to 1993.

How much does the Case 9050 weigh?

The Case 9050 weighs 30.9 tons.

What are the transport dimensions of the Case 9050 crawler excavator?

The Case 9050 crawler excavator has a transport length of 10.87 meters, a transport width of 3.4 meters, and a transport height of 3.81 meters.

What are the undercarriage specifications of the Case 9050 crawler excavator?

The Case 9050 crawler excavator has a heavy duty undercarriage with a track width of 800 mm.

What are the dredging depth and maximum horizontal reach of the Case 9050 crawler excavator?

The Case 9050 crawler excavator has a dredging depth of 8.2 meters and a maximum horizontal reach of 11.68 meters.

What are the power ratings of the Case 9050 crawler excavator?

The available data does not provide power ratings for the Case 9050 crawler excavator.

What are the bucket specifications of the Case 9050 crawler excavator?

The Case 9050 crawler excavator has a bucket capacity ranging from 0.92 to 2.09 cubic meters and a bucket width of 1.52 meters.

How much is a Case 9050 Crawler excavator (1990u20131993) worth?

The residual value of the Case 9050 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
