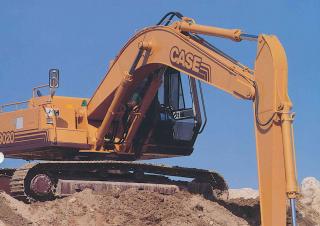

9020 Case excavator specs & Dimensions (1990 - 2015)

Case 9020 is a Crawler Excavator manufactured from 1990 to 2015, with a weight of 15.4 tons. It features a track width of 600 mm, …

Case 9020 is a Crawler Excavator manufactured from 1990 to 2015, with a weight of 15.4 tons. It features a track width of 600 mm, a transport length of 8.31 meters, a transport width of 2.59 meters, and a transport height of 2.93 meters. The machine has a tear-out force of 88 kN, a dredging depth of 6.55 meters, and a maximum horizontal reach of 9.32 meters. The bucket width is 1.52 meters, with a bucket capacity ranging from 0.36 m³ to 0.86 m³.

Crawler Excavators Case 9020

Technical specs - 9020 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.4 t
Transport length
8.31 m
Transport width
2.59 m
Transport height
2.93 m
Bucket capacity
0.86 m³
Bucket capacity min.
0.36 m³
Bucket capacity max.
0.86 m³
Undercarriage
HD
Track width
600 mm
Max. Reach horizontal
9.32 m
Dredging depth
6.55 m
Tear-out force
88 kN
Bucket width
1.52 m
Engine manuf.
Case
Engine type
4TA 390
Engine power
77 kW
Displacement
3.92 l
Revolutions at max torque
1600 rpm
Max. torque
393 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 9020 FAQ

When was the Case 9020 crawler excavator manufactured?

The Case 9020 crawler excavator was manufactured from 1990 to 2015.

How much does the Case 9020 weigh?

The Case 9020 weighs 15.4 tons.

What are the transport dimensions of the Case 9020 crawler excavator?

The Case 9020 crawler excavator has a transport length of 8.31 meters, a transport width of 2.59 meters, and a transport height of 2.93 meters.

What are the undercarriage specifications of the Case 9020 crawler excavator?

The Case 9020 crawler excavator has a heavy duty undercarriage with a track width of 600 mm.

What is the excavation performance of the Case 9020 crawler excavator?

The Case 9020 crawler excavator has a dredging depth of 6.55 meters and a maximum horizontal reach of 9.32 meters.

What is the power rating of the Case 9020 crawler excavator?

The source data does not provide power rating information for the Case 9020 crawler excavator.

What are the specifications of the primary work tool bucket on the Case 9020 crawler excavator?

The Case 9020 crawler excavator has a bucket with a capacity ranging from 0.36 to 0.86 cubic meters and a bucket width of 1.52 meters.

How much is a Case 9020 Crawler excavator (1990u20132015) worth?

The residual value of the Case 9020 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case 9020 overview

Hydraulic and electronic system

Serviceability Made Quick & Easy.

You know how important it is to stay on schedule. That's why you need an excavator that can be serviced and maintained quickly and easily. Serviceability was designed into the 90 Series. All 90 Series include a system display monitor. It provides immediate visual warning of any function that needs attention. Swing out oil coolers make it easy to clean the radiator and the hydraulic oil cooler. This helps ensure greater efficiency and longer life. Checking pressure is made easy thanks to hydraulic quick couplers. Access is easy with wide service doors that provide plenty of room for maintenance. The 90 Series is designed to keep you up and running with minimal downtime.


Undercarriage

Tough Undercarriage

The undercarriage on all six of the Case 90 Series provides excellent mobility, stability and long life. Two-speed travel gives you high speed to get to your job quickly and controllability for maneuvering in close quarters. Alternating inner and outer flanged bottom rollers prevent track snaking and spread stress evenly along the chain. The 9040, 9050 and 9060 also offer a single pedal drive feature, which engages both tracks simultaneously. Single pedal travel reduces operator fatigue when traveling from site to site. It also increases machine productivity by making repositioning and loading of the machine easy.


Cab

Efficient Operator Environment

When designing the cabs for the 90 Series, we had several objectives. We wanted the cabs to be spacious, efficient, provide a full field of vision, and above all, we wanted them to be comfortable. We have accomplished these goals. Getting in the cab is easy due to the design of the left armrest, which tilts up for easy access. Once inside, you can choose from 8 different seat positions to customize the fit to any operator's requirements. Plus, armrests and hand controls can be adjusted separately to provide a true custom-fit to the operator. The hand controls are ergonomically designed and are adjustable for increased comfort. Visibility is outstanding with an exceptional view deep into the trench and all around the work site. There’s even a hinged skylight which enhances visibility for working around overhead obstructions. Three windows provide excellent cross-flow ventilation. The windshield slides on an overhead track, and the removable lower front window easily stores behind the operator seat, secure and out of the way.
