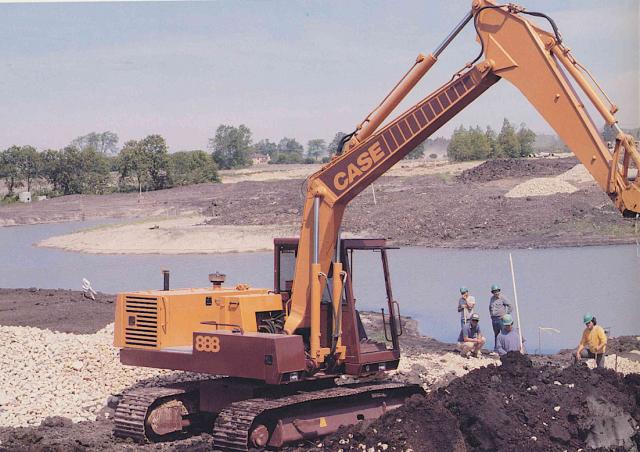

688 Case excavator specs & Dimensions (1987 - 2015)

Case 688 is a Crawler Excavator manufactured from 1987 to 2015, with a weight of 13.37 tons. It features a track width of 610 mm, …

Case 688 is a Crawler Excavator manufactured from 1987 to 2015, with a weight of 13.37 tons. It features a track width of 610 mm, a transport length of 7.7 meters, a transport width of 2.57 meters, and a transport height of 2.9 meters. The excavator has a tear-out force of 84 kN, a dredging depth of 5.63 meters, and a maximum horizontal reach of 8.29 meters. The bucket width is 1.04 meters, with a bucket capacity ranging from 0.31 m³ to 0.76 m³.

Crawler Excavators Case 688

Technical specs - 688 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.37 t
Transport length
7.7 m
Transport width
2.57 m
Transport height
2.9 m
Bucket capacity
0.76 m³
Bucket capacity min.
0.31 m³
Bucket capacity max.
0.76 m³
Track width
610 mm
Max. Reach horizontal
8.29 m
Dredging depth
5.63 m
Tear-out force
84 kN
Bucket width
1.04 m
Engine manuf.
Case
Engine type
4T 390
Engine power
67 kW
Displacement
3.92 l
Revolutions at max torque
1500 rpm
Max. torque
339 Nm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: undercarriage, boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 688 FAQ

When was the Case 688 crawler excavator manufactured?

The Case 688 crawler excavator was manufactured from 1987 to 2015.

How much does the Case 688 crawler excavator weigh?

The Case 688 crawler excavator weighs 13.37 tons.

What are the transport dimensions of the Case 688 crawler excavator?

The Case 688 crawler excavator has a transport length of 7.7 meters, a transport width of 2.57 meters, and a transport height of 2.9 meters.

What is the track width of the Case 688 crawler excavator?

The Case 688 crawler excavator has a track width of 610 mm.

What are the excavation specifications of the Case 688 crawler excavator?

The Case 688 crawler excavator has a dredging depth of 5.63 meters and a maximum horizontal reach of 8.29 meters.

What is the tear-out force of the Case 688 crawler excavator?

The Case 688 crawler excavator has a tear-out force of 84 kN.

What are the specifications of the primary work tool bucket on the Case 688 crawler excavator?

The Case 688 crawler excavator's primary work tool bucket has a capacity ranging from 0.31 to 0.76 cubic meters and a width of 1.04 meters.

How much is a Case 688 Crawler excavator (1987u20132015) worth?

The residual value of the Case 688 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case 688 overview

Engine

Fast, simplified servicing

All routine servicing can be done from groundline or from the service walkway behind the cab. A tilt-up door and removable side panel provide easy access to the engine.


Hydraulic and electronic system

Closed-center, load-sensing, constant hp hydraulic system

The load-sensing hydraulic system of the 688 supplies hydraulic flow to meet the needs of various functions on demand, while maintaining constant, efficient engine speed. The unique, main component of the system is two concentric pumps within one housing. An outer, variable-displacement piston pump meters flow on demand to the boom, dipper, bucket, travel and auxiliary functions. This variable pump accommodates load demands by changing displacement. It can also go to zero stroke at maximum pressure to prevent energy loss over the relief valve. The inner pump is a fixed-displacement unit dedicated to the independent operation of the swing system. As shown, a separate pump supplies the pilot and accessory systems. The result is hydraulic power when and where you need it for optimum productivity.


Undercarriage

Advanced electronics

A compact instrument module incorporates the latest in printed circuit technology. Switches, lights and gauges are all located in a pedestal at the operator's fingertips.


Upper Structure

Powerful final drives

Low-torque, high-speed axial piston motors with triple planetary reduction gears supply power to the track drive sprockets. The system includes an automatic speed limiter and disc brakes. Additionally, motors and tubelines are protected by a compact design and guarding.


Cab

Operator comfort

Two power-assist control levers reduce operator fatigue. A deluxe suspension seat is adjustable to operator weight and height. Raising the left-hand console cuts oil flow to all hydraulic controls, providing protection when the operator leaves the machine.


High-visibility cab

An all-steel cab features a one-piece floor-to-ceiling windshield which easily slides open and stores in an up-and-over position. All windows are of generous size for visibility in all directions and are made of tinted safety glass.
