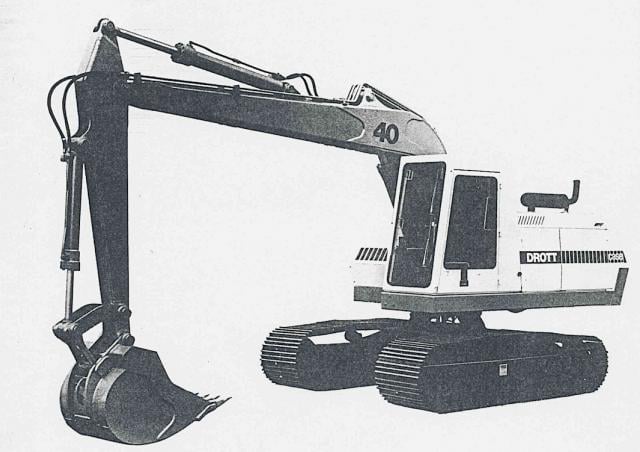

40E Case excavator specs & Dimensions (1981 - 2015)

Case 40E is a Crawler Excavator manufactured from 1981 to 2015. It has a weight of 18.46 tons and a track width of 762 mm. The tra…

Case 40E is a Crawler Excavator manufactured from 1981 to 2015. It has a weight of 18.46 tons and a track width of 762 mm. The transport dimensions are 10.74 meters in length, 3.02 meters in width, and 3.71 meters in height. The machine features a tear-out force of 145 kN, a dredging depth of 7.32 meters, and a maximum horizontal reach of 10.21 meters. The bucket width is 1.5 meters, with a capacity ranging from 0.46 to 1.15 cubic meters.

Crawler Excavators Case 40E

Technical specs - 40E Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
18.46 t
Transport length
10.74 m
Transport width
3.02 m
Transport height
3.71 m
Bucket capacity
1.15 m³
Bucket capacity min.
0.46 m³
Bucket capacity max.
1.15 m³
Track width
762 mm
Max. Reach horizontal
10.21 m
Dredging depth
7.32 m
Tear-out force
145 kN
Bucket width
1.5 m
Model series
E
Engine manuf.
Detroit Diesel
Engine type
4-71 N
Engine power
117 kW
Displacement
4.65 l
Revolutions at max torque
1600 rpm
Max. torque
542 Nm
No. of cylinders
4
Cylinder bore x stroke
108x127 mm

More technical details, like: undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 40E FAQ

When was the Case 40E manufactured?

The Case 40E was manufactured from 1981 to 2015.

How much does the Case 40E weigh?

The Case 40E weighs 18.46 tons.

What are the transport dimensions of the Case 40E crawler excavator?

The Case 40E crawler excavator has a transport length of 10.74 meters, a transport width of 3.02 meters, and a transport height of 3.71 meters.

What is the track width of the Case 40E crawler excavator?

The Case 40E crawler excavator has a track width of 762 mm.

What are the excavation performance specifications of the Case 40E?

The Case 40E has a dredging depth of 7.32 meters and a maximum horizontal reach of 10.21 meters.

What is the tear-out force of the Case 40E crawler excavator?

The Case 40E crawler excavator has a tear-out force of 145 kN.

What are the specifications of the bucket on the Case 40E crawler excavator?

The Case 40E crawler excavator has a bucket with a capacity ranging from 0.46 to 1.15 cubic meters and a bucket width of 1.5 meters.

How much is a Case 40E Crawler excavator (1981u20132015) worth?

The residual value of the Case 40E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
