1080B Case excavator specs & Dimensions (1986 - 2015)

Case 1080B is a Crawler Excavator manufactured from 1986 to 2015. It has a weight of 20.03 tons and a track width of 610 mm. The t…

Case 1080B is a Crawler Excavator manufactured from 1986 to 2015. It has a weight of 20.03 tons and a track width of 610 mm. The transport dimensions are 9.25 meters in length, 2.87 meters in width, and 3.33 meters in height. The excavator features a tear-out force of 120 kN, a dredging depth of 6.84 meters, and a maximum horizontal reach of 9.67 meters. The bucket width is 1.8 meters, with a capacity ranging from 0.37 m³ to 0.76 m³.

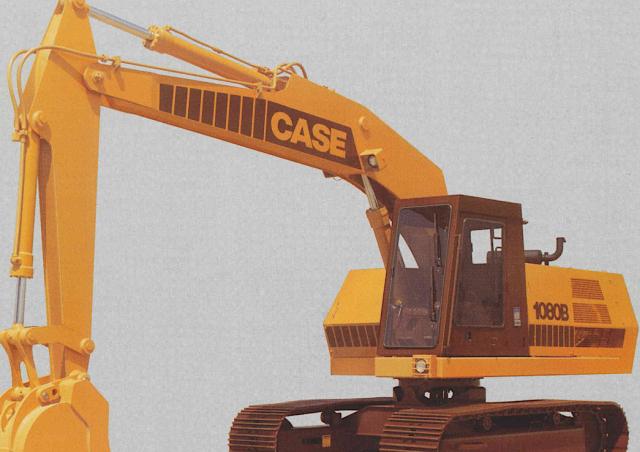

Crawler Excavators Case 1080B

Technical specs - 1080B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.03 t
Transport length
9.25 m
Transport width
2.87 m
Transport height
3.33 m
Bucket capacity
0.76 m³
Bucket capacity min.
0.37 m³
Bucket capacity max.
0.76 m³
Track width
610 mm
Max. Reach horizontal
9.67 m
Dredging depth
6.84 m
Tear-out force
120 kN
Bucket width
1.8 m
Model series
B
Engine manuf.
Detroit Diesel
Engine type
4-71 N
Engine power
117 kW
Displacement
4.65 l
Revolutions at max torque
1600 rpm
Max. torque
597 Nm
No. of cylinders
4
Cylinder bore x stroke
108x127 mm

More technical details, like: undercarriage, boom, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case 1080B FAQ

When was the Case 1080B manufactured?

The Case 1080B was manufactured from 1986 to 2015.

How much does the Case 1080B weigh?

The Case 1080B weighs 20.03 tons.

What are the transport dimensions of the Case 1080B crawler excavator?

The Case 1080B crawler excavator has a transport length of 9.25 meters, a transport width of 2.87 meters, and a transport height of 3.33 meters.

What is the track width of the Case 1080B crawler excavator?

The Case 1080B crawler excavator has a track width of 610 mm.

What are the excavation performance specifications of the Case 1080B?

The Case 1080B has a dredging depth of 6.84 meters and a maximum horizontal reach of 9.67 meters.

What power ratings are available for the Case 1080B?

There are no power ratings available for the Case 1080B in the provided data. The only related specification is a tear-out force of 120 kN.

What are the bucket specifications of the Case 1080B crawler excavator?

The Case 1080B crawler excavator has a bucket capacity ranging from 0.37 to 0.76 cubic meters, with a bucket width of 1.8 meters.

How much is a Case 1080B Crawler excavator (1986u20132015) worth?

The residual value of the Case 1080B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
