688 B CK Case Poclain excavator specs & Dimensions (1993 - 1995)

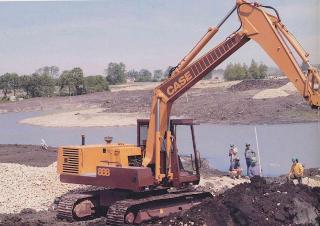

Case Poclain 688 B CK is a crawler excavator manufactured from 1993 to 1995, with a weight of 13.2 tons. It has a track width of 7…

Case Poclain 688 B CK is a crawler excavator manufactured from 1993 to 1995, with a weight of 13.2 tons. It has a track width of 700 mm, a transport length of 7.7 meters, a transport width of 2.57 meters, and a transport height of 2.94 meters.

Crawler Excavators Case Poclain 688 B CK

Technical specs - 688 B CK Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.2 t
Transport length
7.7 m
Transport width
2.57 m
Transport height
2.94 m
Bucket capacity
0.7 m³
Track width
700 mm
Model series
CK
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., undercarriage, boom, max. reach horizontal, dredging depth, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 688 B CK FAQ

When was the Case Poclain 688 B CK manufactured?

The Case Poclain 688 B CK was manufactured from 1993 to 1995.

How much does the Case Poclain 688 B CK weigh?

The Case Poclain 688 B CK weighs 13.2 tons.

What are the transport dimensions of the Case Poclain 688 B CK?

The Case Poclain 688 B CK has a transport length of 7.7 meters, a transport width of 2.57 meters, and a transport height of 2.94 meters.

What is the track width of the Case Poclain 688 B CK's undercarriage?

The Case Poclain 688 B CK has a track width of 700 mm.

What is the bucket capacity of the Case Poclain 688 B CK?

The Case Poclain 688 B CK has a bucket capacity of 0.7 cubic meters.
