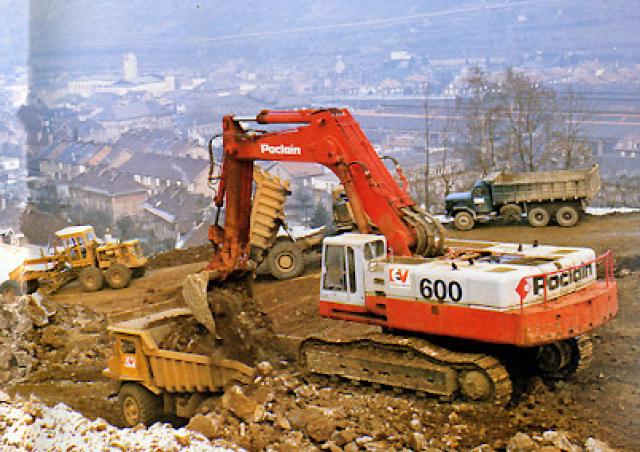

600 Case Poclain excavator specs & Dimensions (1974 - 2026)

Case Poclain 600 is a crawler excavator manufactured since 1974, weighing 104 tons with a transport width of 4 meters. It has a dr…

Case Poclain 600 is a crawler excavator manufactured since 1974, weighing 104 tons with a transport width of 4 meters. It has a dredging depth of 11 meters and a maximum horizontal reach of 16 meters. The bucket capacity is 1 cubic meter.

Crawler Excavators Case Poclain 600

Technical specs - 600 Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
104 t
Transport width
4.97 m
Bucket capacity
1.67 m³
Bucket capacity min.
1.67 m³
Undercarriage
LC
Boom
MB
Max. Reach horizontal
16.5 m
Dredging depth
11.1 m
Engine manuf.
Deutz
Engine type
F 12 L 413
No. of cylinders
12

More technical details, like: transport length, transport height, bucket capacity max., track width, tear-out force, bucket width, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: transport length, transport height, bucket capacity max., track width, tear-out force, bucket width, model series, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 600 FAQ

When was the Case Poclain 600 manufactured?

The Case Poclain 600 was first produced in 1974.

How much does the Case Poclain 600 weigh?

The Case Poclain 600 weighs 104 tons.

What is the transport width of the Case Poclain 600 crawler excavator?

The transport width of the Case Poclain 600 crawler excavator is 4.97 meters.

What type of undercarriage does the Case Poclain 600 have?

The Case Poclain 600 has a long undercarriage.

What are the excavation performance specifications of the Case Poclain 600?

The Case Poclain 600 has a dredging depth of 11.1 meters, a maximum horizontal reach of 16.5 meters, and features a monobloc boom.

What is the bucket capacity of the Case Poclain 600 excavator?

The Case Poclain 600 excavator has a bucket capacity of 1.67 cubic meters.

How much is a Case Poclain 600 Crawler excavator (1974u20132025) worth?

The residual value of the Case Poclain 600 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
