E88 Bobcat excavator specs & Dimensions (2021 - 2026)

Bobcat E88 is a crawler excavator manufactured since 2021, with a weight of 8.89 tons. It has a transport length of 6.34 meters, a…

Bobcat E88 is a crawler excavator manufactured since 2021, with a weight of 8.89 tons. It has a transport length of 6.34 meters, a transport width of 2.2 meters, and a transport height of 2.54 meters. The dredging depth is 4.6 meters, and the maximum horizontal reach is 7.2 meters.

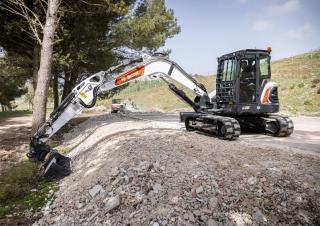

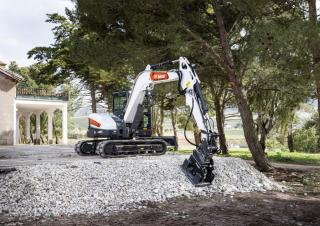

Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88
Crawler Excavators Bobcat E88

Visit Bobcat live at

Technical specs - E88 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.89 t
Transport length
6.34 m
Transport width
2.2 m
Transport height
2.54 m
Max. Reach horizontal
7.2 m
Dredging depth
4.6 m
Model series
E
Engine manuf.
N/A
Engine type
N/A
Engine power
48.5 kW
Emission level
Tier 4

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, boom, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, track width, boom, tear-out force, bucket width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E88 FAQ

When was the Bobcat E88 manufactured?

The Bobcat E88 was first produced in 2021.

How much does the Bobcat E88 weigh?

The Bobcat E88 weighs 8.89 tons.

What are the transport dimensions of the Bobcat E88?

The Bobcat E88 has a transport length of 6.34 meters, a transport width of 2.2 meters, and a transport height of 2.54 meters.

What are the dredging depth and maximum horizontal reach of the Bobcat E88?

The Bobcat E88 has a dredging depth of 4.6 meters and a maximum horizontal reach of 7.2 meters.

How much is a Bobcat E88 Crawler excavator (2021u20132025) worth?

The residual value of the Bobcat E88 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
