E60 Bobcat excavator specs & Dimensions (2021 - 2026)

Bobcat E60 is a crawler excavator manufactured since 2021. It has a weight of 6.13 tons and a track width of 400 mm. The transport…

Bobcat E60 is a crawler excavator manufactured since 2021. It has a weight of 6.13 tons and a track width of 400 mm. The transport dimensions are 5.543 meters in length, 1.959 meters in width, and 2.551 meters in height. The machine features a tear-out force of 33.47 kN, a dredging depth of 3.937 meters, and a maximum horizontal reach of 5.958 meters.

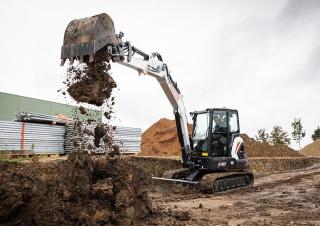

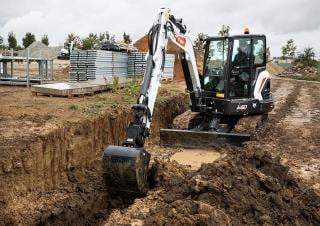

Crawler Excavators Bobcat E60
Crawler Excavators Bobcat E60
Crawler Excavators Bobcat E60
Crawler Excavators Bobcat E60
Crawler Excavators Bobcat E60
Crawler Excavators Bobcat E60

Visit Bobcat live at

Technical specs - E60 Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.13 t
Transport length
5.543 m
Transport width
1.959 m
Transport height
2.551 m
Track width
400 mm
Max. Reach horizontal
5.958 m
Dredging depth
3.937 m
Tear-out force
33.47 kN
Model series
E
Engine manuf.
Bobcat
Engine type
k.A.
Engine power
41 kW
Displacement
2.392 l
Max. torque
190 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., undercarriage, boom, bucket width, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E60 FAQ

When was the Bobcat E60 manufactured?

The Bobcat E60 was first produced in 2021.

How much does the Bobcat E60 weigh?

The Bobcat E60 weighs 6.13 tons.

What are the transport dimensions of the Bobcat E60?

The Bobcat E60 has a transport length of 5.54 meters, a transport width of 1.96 meters, and a transport height of 2.55 meters.

What is the track width of the Bobcat E60's undercarriage?

The Bobcat E60 has a track width of 400 mm.

What are the excavation performance specifications of the Bobcat E60?

The Bobcat E60 has a dredging depth of 3.937 meters and a maximum horizontal reach of 5.958 meters.

What is the tear-out force of the Bobcat E60?

The Bobcat E60 has a tear-out force of 33.47 kN.

How much is a Bobcat E60 Crawler excavator (2021u20132025) worth?

The residual value of the Bobcat E60 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
