BE75 Beml excavator specs & Dimensions (2017 - 2026)

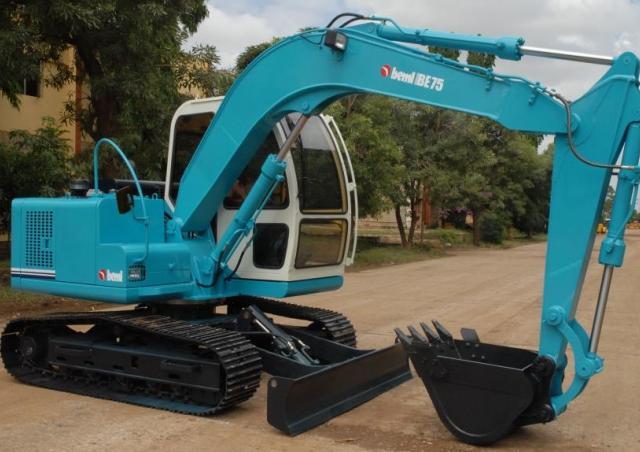

Beml BE75 is a Crawler Excavator manufactured since 2017. It has a weight of 7.5 tons and a track width of 450 mm. The transport d…

Beml BE75 is a Crawler Excavator manufactured since 2017. It has a weight of 7.5 tons and a track width of 450 mm. The transport dimensions are 5.85 meters in length, 2.28 meters in width, and 2.615 meters in height. The machine features a tear-out force of 48.3 kN, a dredging depth of 4.09 meters, and a maximum horizontal reach of 6.225 meters. The bucket width is 0.92 meters with a capacity of 0.3 cubic meters.

Crawler Excavators Beml BE75

Technical specs - BE75 Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Transport length
5.85 m
Transport width
2.28 m
Transport height
2.615 m
Bucket capacity
0.3 m³
Undercarriage
SL
Track width
450 mm
Max. Reach horizontal
6.225 m
Dredging depth
4.09 m
Tear-out force
48.3 kN
Bucket width
0.92 m
Engine manuf.
Kirloskar Oil Engines Ltd.
Engine type
4R 1040 NA
Engine power
42.5 kW
Displacement
4.16 l
Revolutions at max torque
1500 rpm
Max. torque
272 Nm
No. of cylinders
4
Cylinder bore x stroke
105x120 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Beml BE75 FAQ

When was the Beml BE75 manufactured?

The Beml BE75 was first produced in 2017.

How much does the Beml BE75 weigh?

The Beml BE75 weighs 7.5 tons.

What are the transport dimensions of the Beml BE75 crawler excavator?

The Beml BE75 crawler excavator has a transport length of 5.85 meters, a transport width of 2.28 meters, and a transport height of 2.62 meters.

What are the undercarriage specifications of the Beml BE75?

The Beml BE75 has a standard undercarriage with a track width of 450 mm.

What are the excavation performance specifications of the Beml BE75?

The Beml BE75 has a dredging depth of 4.09 meters and a maximum horizontal reach of 6.225 meters.

What are the power ratings of the Beml BE75?

The source data does not provide power rating information for the Beml BE75.

What are the bucket specifications of the Beml BE75 crawler excavator?

The Beml BE75 crawler excavator has a bucket capacity of 0.3 cubic meters and a bucket width of 0.92 meters.
