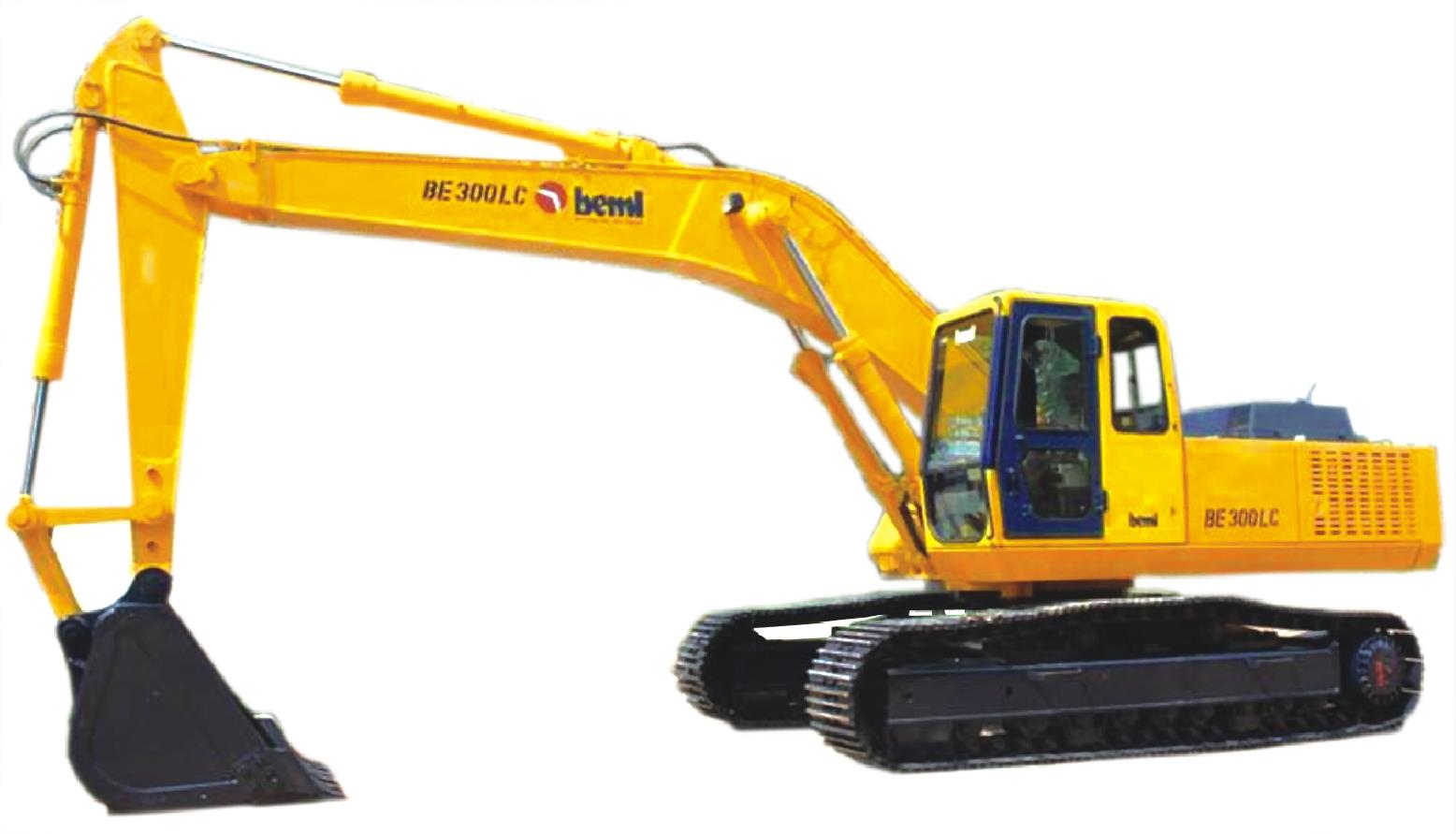

BE300LC Beml excavator specs & Dimensions (2017 - 2026)

Beml BE300LC is a Crawler Excavator manufactured since 2017, with a weight of 30.8 tons. It features a track width of 610 mm, a tr…

Beml BE300LC is a Crawler Excavator manufactured since 2017, with a weight of 30.8 tons. It features a track width of 610 mm, a transport length of 10.81 meters, a transport width of 3.19 meters, and a transport height of 3.43 meters. The excavator has a tear-out force of 169 kN, a dredging depth of 7.32 meters, and a maximum horizontal reach of 10.92 meters. The bucket width is 1.605 meters, and the bucket capacity is 1.57 cubic meters.

Crawler Excavators Beml BE300LC

Technical specs - BE300LC Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.8 t
Transport length
10.81 m
Transport width
3.19 m
Transport height
3.43 m
Bucket capacity
1.57 m³
Undercarriage
LC
Track width
610 mm
Max. Reach horizontal
10.92 m
Dredging depth
7.32 m
Tear-out force
169 kN
Bucket width
1.605 m
Engine manuf.
Beml
Engine type
BS6D125
Engine power
147 kW
Displacement
11 l
Revolutions at max torque
1200 rpm
Max. torque
1030 Nm
No. of cylinders
6
Cylinder bore x stroke
125x150 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Beml BE300LC FAQ

When was the Beml BE300LC manufactured?

The Beml BE300LC was first produced in 2017.

How much does the Beml BE300LC crawler excavator weigh?

The Beml BE300LC crawler excavator weighs 30.8 tons.

What are the transport dimensions of the Beml BE300LC crawler excavator?

The Beml BE300LC has a transport length of 10.81 meters, a transport width of 3.19 meters, and a transport height of 3.43 meters.

What are the undercarriage specifications of the Beml BE300LC?

The Beml BE300LC has a long undercarriage with a track width of 610 mm.

What are the excavation performance specifications of the Beml BE300LC?

The Beml BE300LC has a dredging depth of 7.32 meters and a maximum horizontal reach of 10.92 meters.

What is the tear-out force of the Beml BE300LC?

The Beml BE300LC has a tear-out force of 169 kN.

What are the specifications of the primary work tool bucket on the Beml BE300LC?

The Beml BE300LC has a bucket with a capacity of 1.57 cubic meters and a width of 1.605 meters.
