BE200 Beml excavator specs & Dimensions (2017 - 2026)

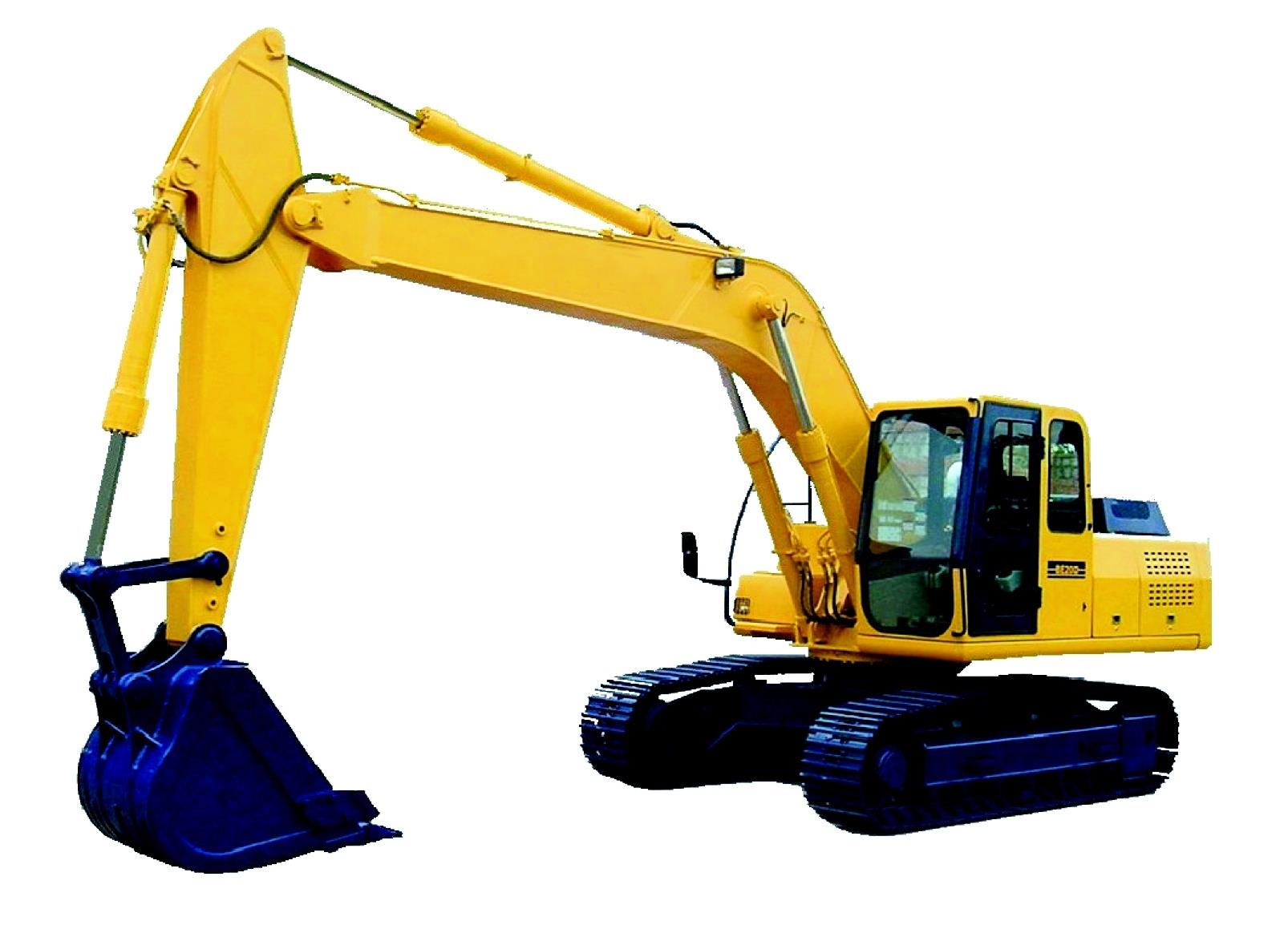

Beml BE200 is a Crawler Excavator manufactured since 2017. It has a weight of 20 tons and a track width of 500 mm. The transport d…

Beml BE200 is a Crawler Excavator manufactured since 2017. It has a weight of 20 tons and a track width of 500 mm. The transport dimensions are 9.57 meters in length, 2.77 meters in width, and 3.375 meters in height. The machine features a tear-out force of 115.6 kN, a dredging depth of 6.14 meters, and a maximum horizontal reach of 9.29 meters. The bucket width is 1.145 meters with a capacity of 0.96 cubic meters.

Crawler Excavators Beml BE200

Technical specs - BE200 Beml

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20 t
Transport length
9.57 m
Transport width
2.77 m
Transport height
3.375 m
Bucket capacity
0.96 m³
Undercarriage
SL
Track width
500 mm
Max. Reach horizontal
9.29 m
Dredging depth
6.14 m
Tear-out force
115.6 kN
Bucket width
1.145 m
Engine manuf.
Beml
Engine type
BS6D105
Engine power
96 kW
Displacement
6.5 l
Revolutions at max torque
2000 rpm
Max. torque
539 Nm
No. of cylinders
6
Cylinder bore x stroke
105x125 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, traction drive, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Beml BE200 FAQ

When was the Beml BE200 manufactured?

The Beml BE200 was first produced in 2017.

How much does the Beml BE200 crawler excavator weigh?

The Beml BE200 crawler excavator weighs 20 tons.

What are the transport dimensions of the Beml BE200 crawler excavator?

The Beml BE200 has a transport length of 9.57 meters, a transport width of 2.77 meters, and a transport height of 3.38 meters.

What are the undercarriage specifications of the Beml BE200?

The Beml BE200 has a standard undercarriage with a track width of 500 mm.

What are the excavation performance specifications of the Beml BE200?

The Beml BE200 has a dredging depth of 6.14 meters and a maximum horizontal reach of 9.29 meters.

What are the power ratings of the Beml BE200?

The source data does not provide any power ratings for the Beml BE200.

What are the specifications of the primary work tool bucket on the Beml BE200?

The primary work tool bucket of the Beml BE200 has a capacity of 0.96 cubic meters and a width of 1.145 meters.
